RadioLink R9DS Receiver

Product detailed description

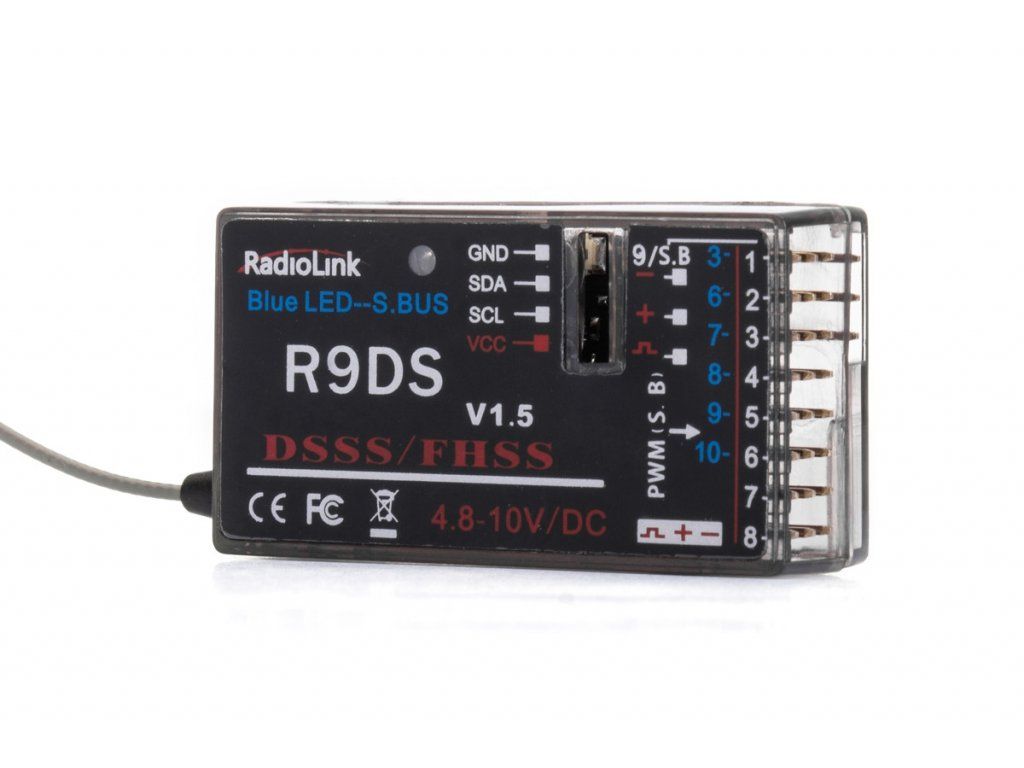

Radiolink R9DS 2.4GHz is a 9-channel telemetry receiver with synchronous DSSS and FHSS transmission with frequency hopping compatible with Radiolink AT9, AT 9S, AT10 and AT10II transmitters (AT10II must be switched to 10CH transmission mode). R9DS offers PWM signal output (9 channels) or serial S-BUS (10 channels). The receiver is compatible with PRM-01 and PRM-02 telemetry modules.

Two operating modes - with standard width modulated (PWM) signal servo outputs (9 channels), or with serial S-BUS output (10 channels).

The receiver is suitable for RC models of all types (the manufacturer's range is 900 m on the ground and 2000-3000 m in the air).

The use of DSSS/FHSS transmission technology provides high immunity to interference and the possibility of setting emergency deviations (fail-safe) in case of failure or strong interference of the transmitter signal

Operating modes
With individual PWM servo signal outputs: red LED indicates PWM signal output, 9 channels in total.
With serial SBUS output: blue/purple LED indicates SBUS signal output, 10 channels in total. SBUS and PWM signal outputs can be used in SBUS operating mode simultaneously. Socket 9 outputs the SBUS signal, and at the same time socket 1 outputs the PWM signal of channel CH3, sockets 2 to 6 outputs the PWM signal of channels CH6 to CH10.
Pairing with the transmitter is done using the pairing button on the receiver, the operating states are indicated by an LED.
The receiver is equipped with contact strips for standard UNI connectors (=JR/Graupner, Hitec, Futaba); the pins are oriented in the direction of the longitudinal axis of the receiver.

The package includes: R9DS receiver, instructions.

Modulation/Encoding - 2.4GHz FHSS / DSSS
Number of channels (PWM) - (S-BUS) 9 - 10
Serial output - S-BUS
Fail-safe functions
Power supply - 4.8V,6V,7.2V,7.4V
Current consumption without servos [mA] 40 - 180
Length [mm] - 43
Width [mm] - 24
Height [mm] - 15
Weight [g] - 14
