RadioLink R6DS Receiver

Product detailed description

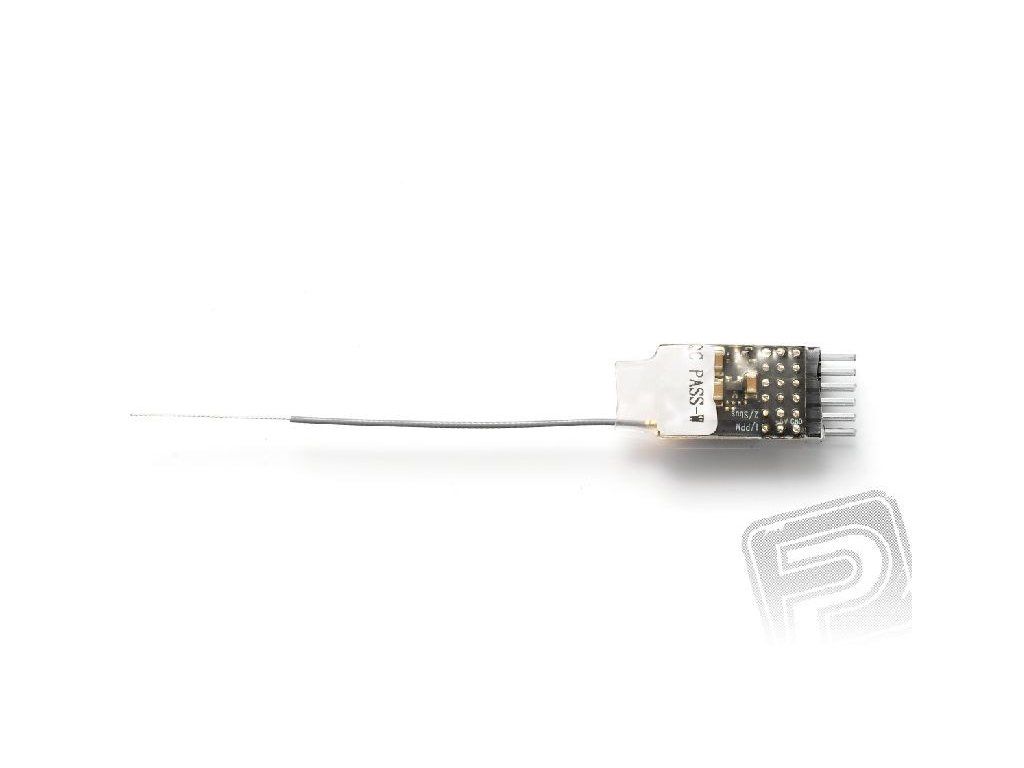

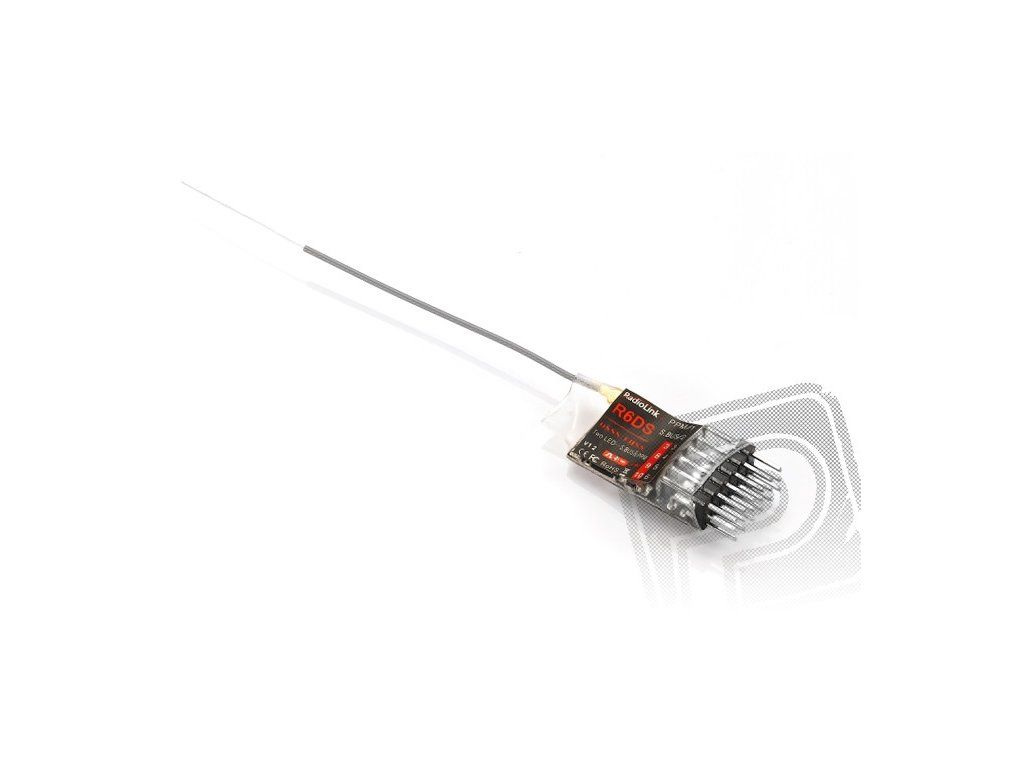

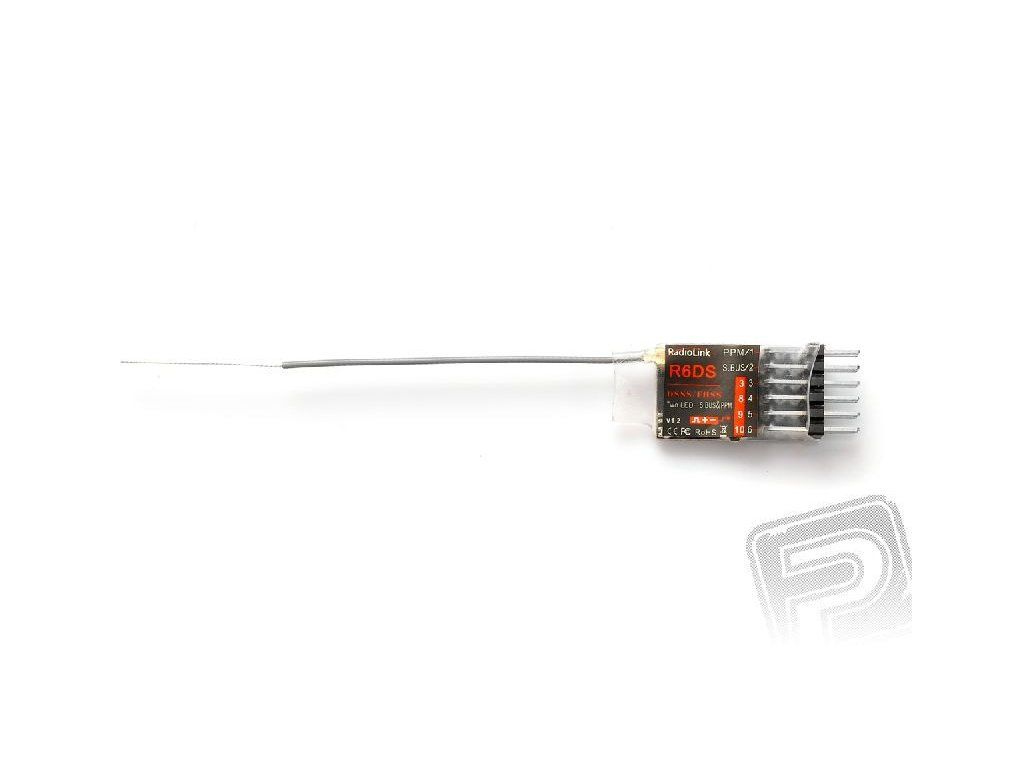

Small 6-channel 2.4GHz FHSS / DSSS receiver for Radiolink AT9S and AT10II transmitters. PWM operating mode: 6 individual servo channel outputs. S-BUS operating mode: S-BUS serial output + PPM + 4 PWM channels (total 10 channels). Dimensions 25x15x10mm, 3.4g. Limited range.

Radiolink R6DS 2.4GHz is a small 6-channel receiver with synchronous DSSS and FHSS frequency hopping transmission compatible with Radiolink AT9, AT 9S, AT10 and AT10II transmitters (AT10II must be switched to 10CH transmission mode). It offers two operating modes - with standard PWM signal servo outputs (6 channels) or with S-BUS + PPM serial outputs (10 channels).

The receiver is suitable for slow-Flyer and park-Flyer, race Drone and other smaller models (the manufacturer's stated range is 300m on the ground and 600m in the air).

The use of DSSS / FHSS transmission technology brings high immunity to interference and the possibility of setting emergency deviations (fail-safe) in case of failure or strong interference of the transmitter signal.

Operating modes
-With individual PWM servo signal outputs: red LED indicates PWM signal output, a total of 6 channels.

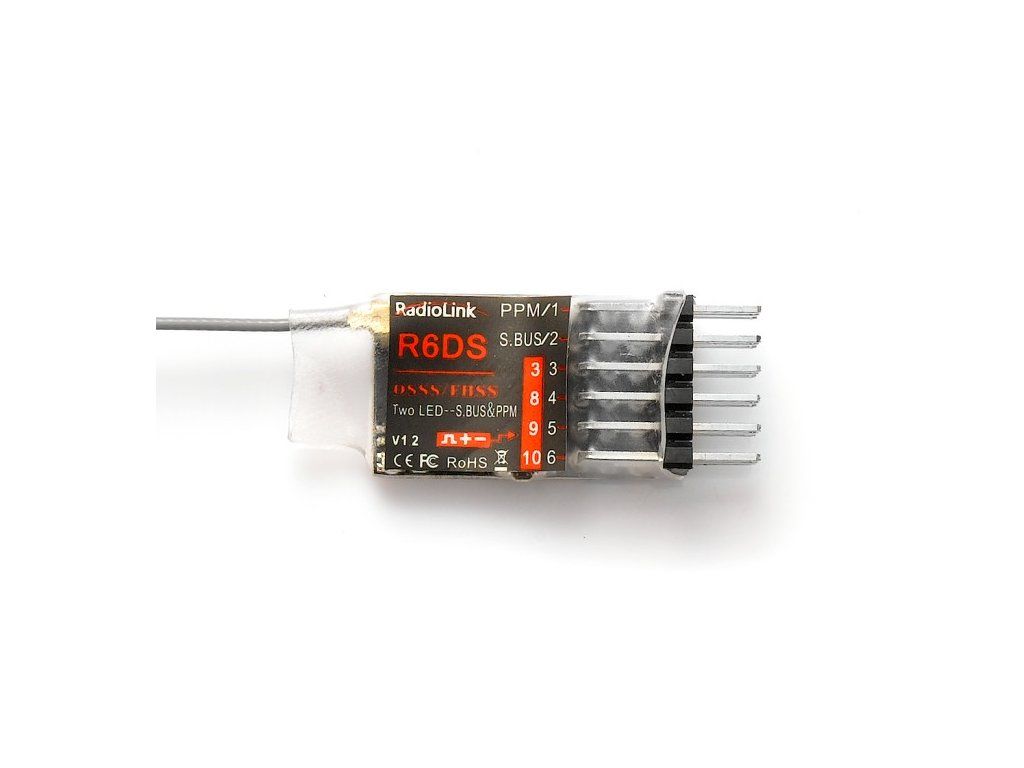

-With serial SBUS + PPM output: blue / purple LED indicates SBUS + PPM signal output, a total of 10 channels. SBUS + PPM and PWM signal outputs can be used in SBUS operating mode simultaneously. The CH1 socket outputs a PPM signal, the CH2 socket outputs an SBUS signal, the CH3 to CH6 sockets simultaneously serve as PWM signal outputs for channels 3, 8, 9 and 10.

Pairing
Pairing with the transmitter is done using the pairing button on the receiver, the operating states are indicated by an LED.

The receiver is equipped with contact strips for standard UNI connectors (= JR / Graupner, Hitec, Futaba); the pins are oriented in the direction of the longitudinal axis of the receiver.

Set contents
The receiver set includes: R6DS receiver, instructions.

Technical data:
Modulation / Coding - 2.4GHz FHSS / DSSS
Number of channels (PWM) - (S-BUS + PPM) 6 - 10
Serial output - PPM, S-BUS
Fail-safe function
Power supply - 4.8V, 6V
Current consumption without servos [mA] - 38 - 45
Length [mm] - 25
Width [mm] - 15
Height [mm] - 10
Weight [g] 3.4
