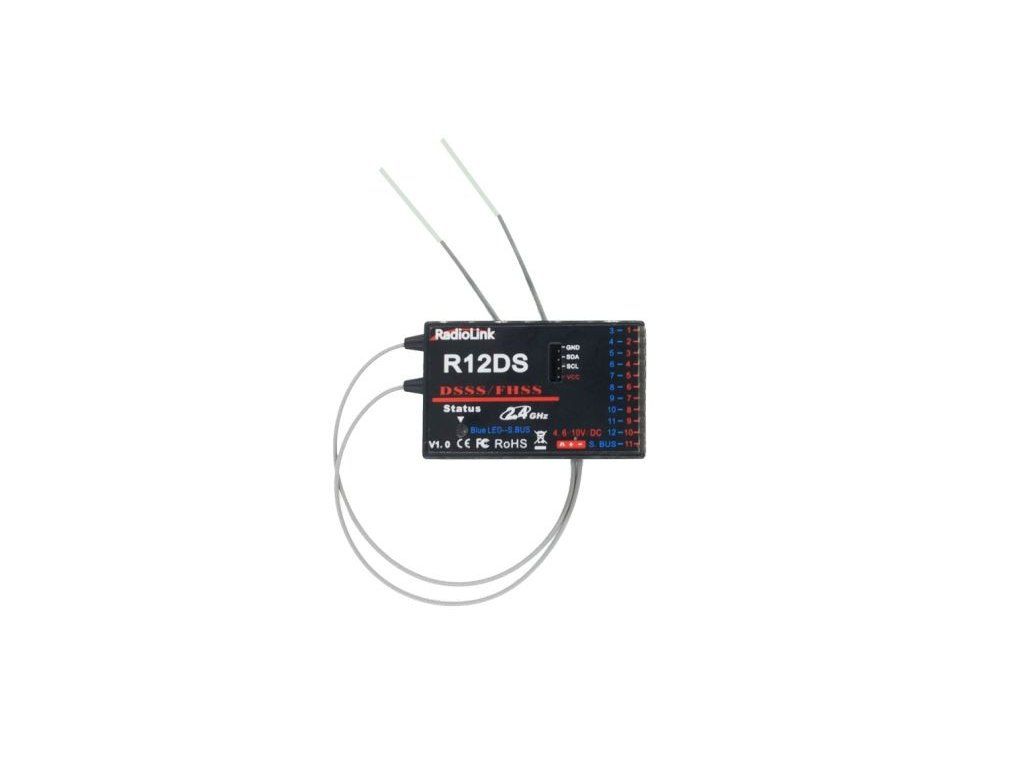

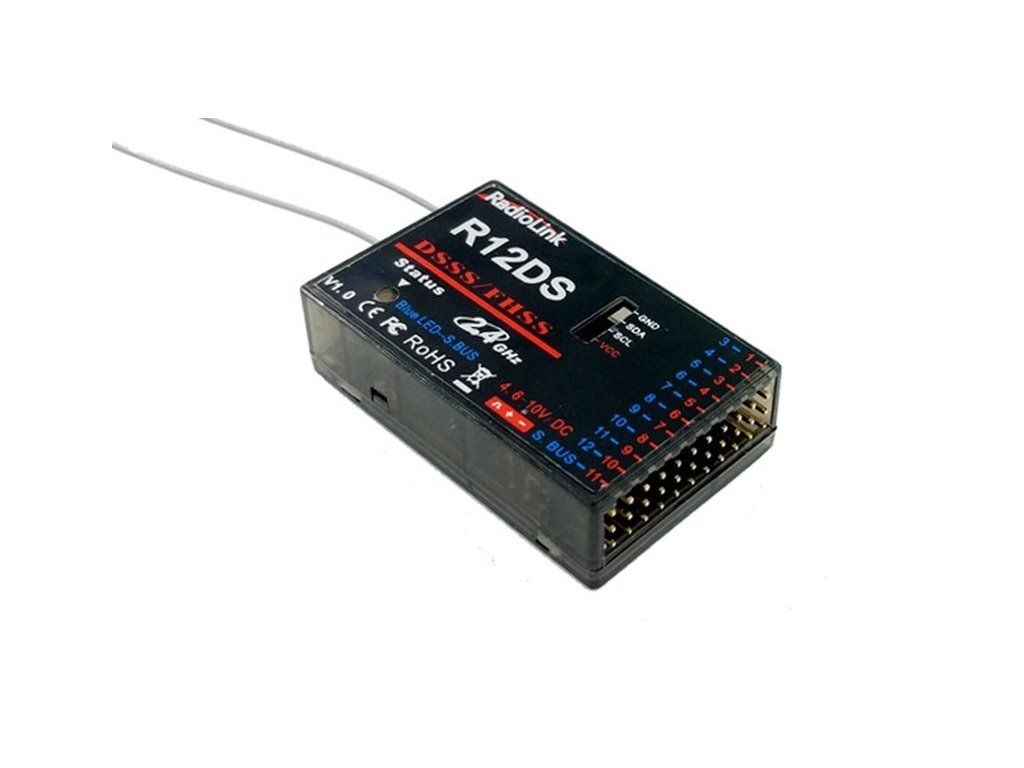

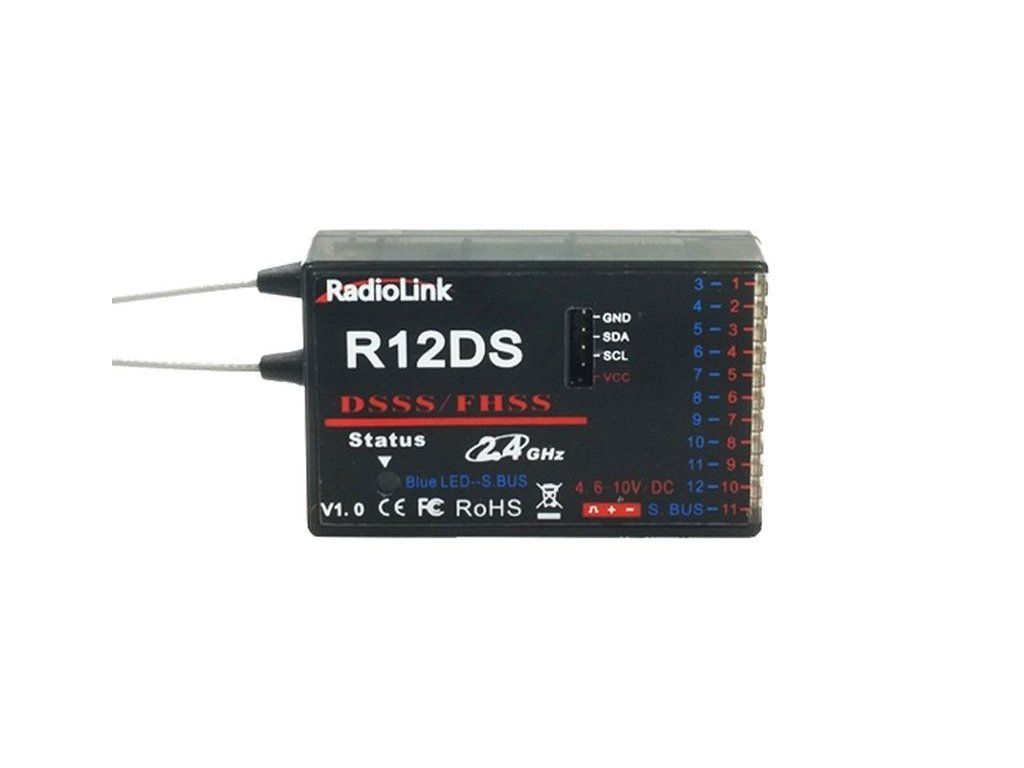

RadioLink R12DS Receiver

Product detailed description

Radiolink R12DS 2.4GHz is a 12-channel telemetry receiver with synchronous DSSS and FHSS transmission with frequency hopping compatible with Radiolink AT9, AT 9S, AT10 and AT10II transmitters (AT9, AT 9S and AT10 transmitters can be upgraded to 12 channels by updating their firmware, which can be downloaded from the manufacturer's website http://radiolink.com.cn/doce/at10upgraded.html, AT10II is 12-channel already in the basic version). The receiver is compatible with PRM-01 and PRM-02 telemetry modules.

Two operating modes - with standard PWM signal servo outputs (11 channels), or with serial S-BUS output (12 channels).

The receiver is suitable for RC models of all types (the manufacturer's stated range is 1100 m on the ground and 3000-4000 m in the air).

The use of DSSS/FHSS transmission technology provides high immunity to interference and the possibility of setting emergency deviations (fail-safe) in case of failure or strong interference of the transmitter signal

Operating modes

With individual PWM servo signal outputs: red LED indicates PWM signal output, a total of 11 channels.
With SBUS serial output: blue/purple LED indicates SBUS signal output, a total of 12 channels. SBUS and PWM signal outputs can be used in SBUS operating mode simultaneously. Socket 11 outputs the SBUS signal, sockets CH1 to CH10 simultaneously serve as PWM signal outputs for channels 3 to 12. How many PWM outputs you can use depends on how many SBUS signal channels you use (e.g. if you use 4 S-BUS signal channels, you have 8 PWM signal channels available).
Pairing with the transmitter is done using the pairing button on the receiver, operating states are indicated by an LED.

The receiver is equipped with contact strips for standard UNI connectors (=JR/Graupner, Hitec, Futaba); the pins are oriented in the direction of the longitudinal axis of the receiver.

Package includes: R12DS receiver, instructions.

Modulation/Encoding 2.4GHz FHSS / DSSS
Number of channels (PWM) - (S-BUS) 11 - 12 Serial output S-BUS
Functions - Fail-safe
Power supply - 4.8V, 6V, 7.2V, 7.4V
Current consumption without servos - 40 - 180mA
Length - 50mm
Width - 31.5mm
Height - 15mm
Weight - 14g
