RadioLink R12DS Receiver Mini

Product detailed description

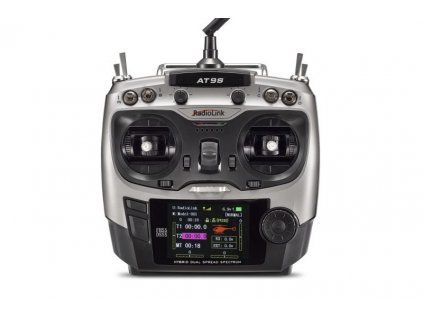

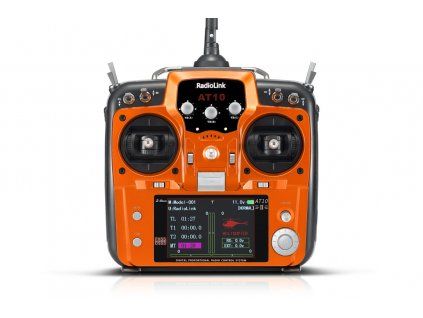

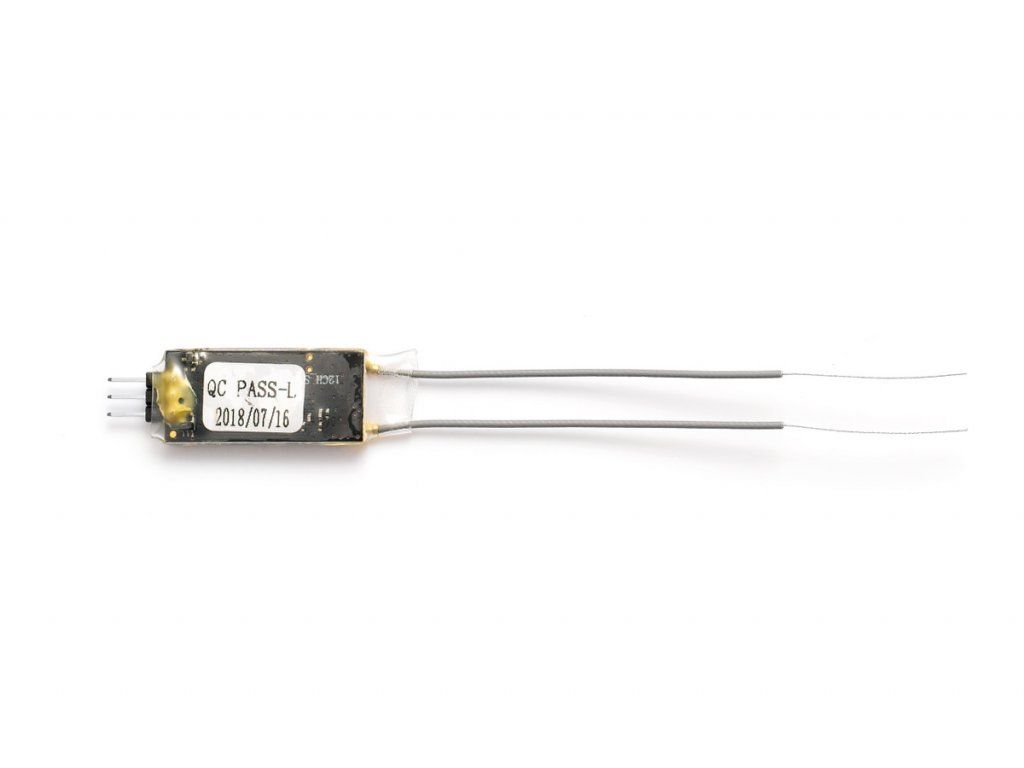

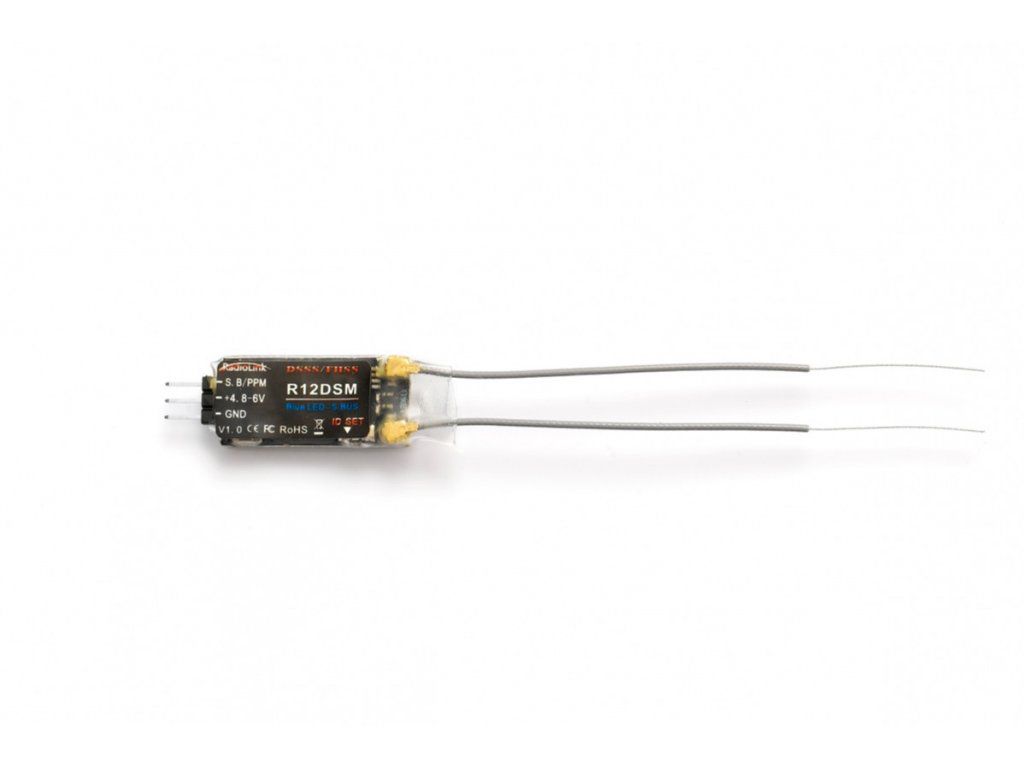

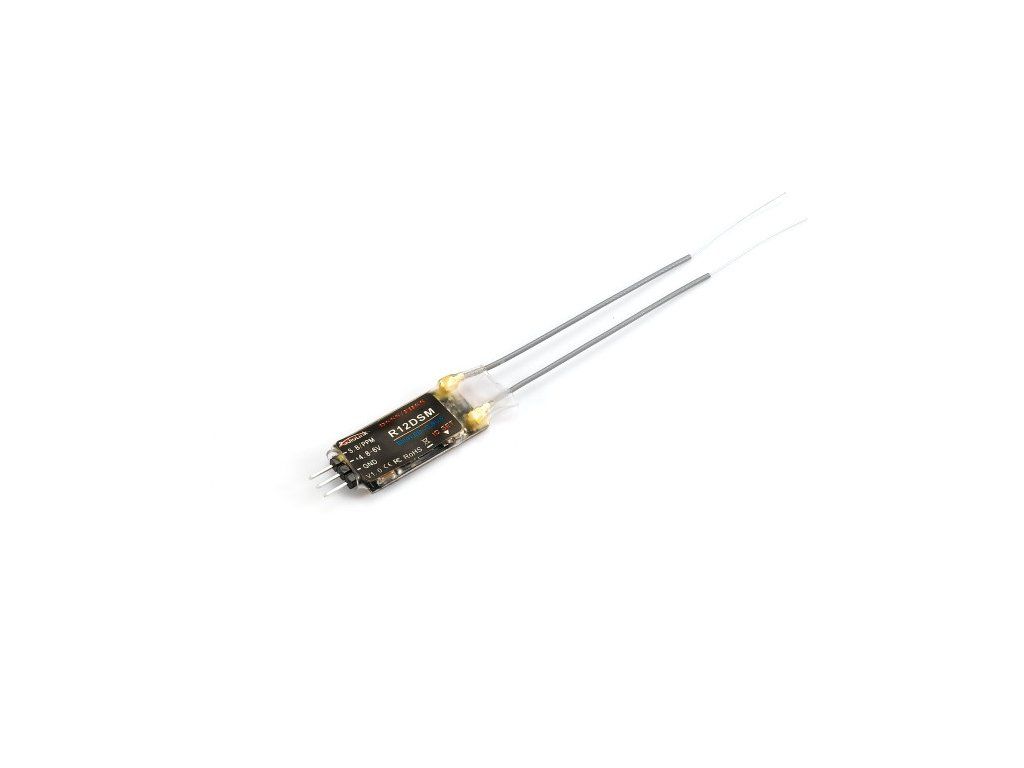

Radiolink R12DSM Mini 2.4GHz is a miniature 12-channel telemetry receiver with synchronous DSSS and FHSS transmission with frequency hopping compatible with Radiolink AT9, AT 9S, AT10 and AT10II transmitters (AT9, AT 9S and AT10 transmitters can be upgraded to 12 channels by updating their firmware, which can be downloaded from the manufacturer's website http://radiolink.com.cn/doce/at10upgraded.html, AT10II is 12-channel already in the basic version). R12DSM offers a switchable serial output S-BUS or PPM.

The receiver is particularly suitable for multicopters and drones of even larger sizes (the manufacturer's stated range is 1100 m on the ground and 3000-4000 m in the air).

The use of DSSS/FHSS transmission technology provides high immunity to interference and the possibility of setting emergency deviations (fail-safe) in case of failure or strong interference of the transmitter signal

Operating modes

With individual PWM servo signal outputs: red LED indicates PWM signal output, 12 channels in total.

With SBUS serial output: blue/purple LED indicates SBUS signal output, 12 channels in total.

Pairing with the transmitter is done using the pairing button on the receiver, operating states are indicated by an LED.

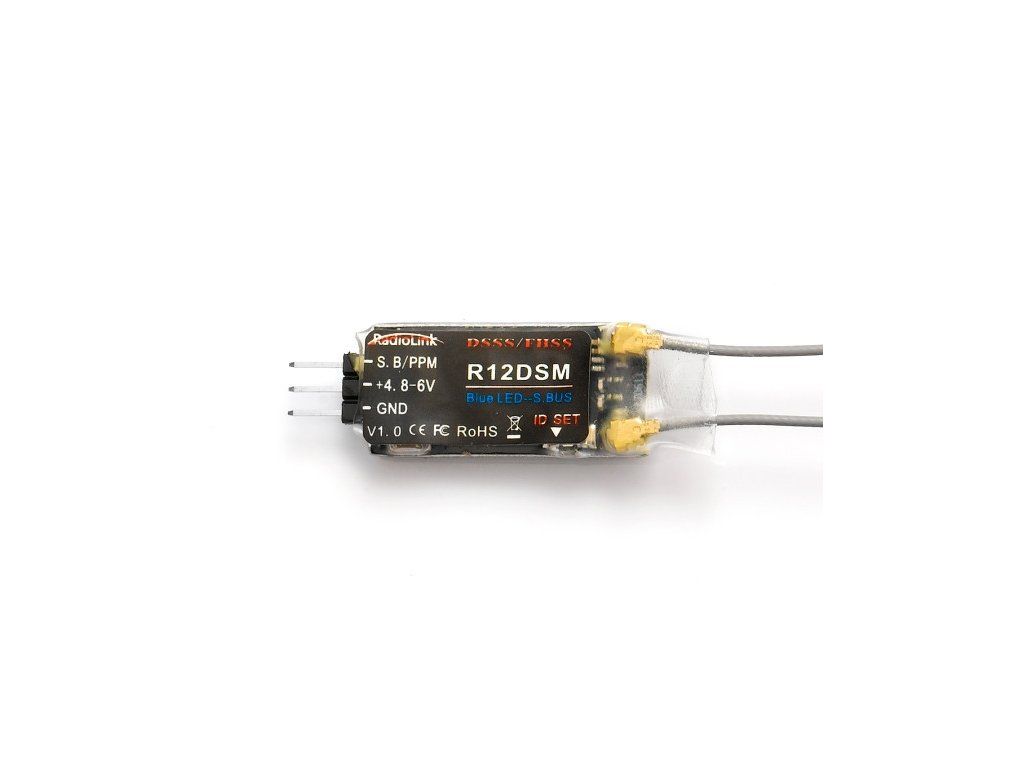

The receiver is equipped with contact strips for standard UNI connectors (=JR/Graupner, Hitec, Futaba); the pins are oriented in the direction of the longitudinal axis of the receiver.

Package includes: R12DSM Mini receiver, instructions.

Modulation/Encoding 2.4GHz FHSS / DSSS
Number of channels (PWM) - (S-BUS) 12
Serial output PPM, S-BUS
Fail-safe functions
Power supply 4.8V,6V,7.2V,7.4V
Current consumption without servos [mA] 38 - 45
Length [mm] 30
Width [mm] 15
Height [mm] 6
Weight [g] 2.5
