KAVAN PRO/Plus programming card

Product detailed description

The LED programming card for KAVAN PRO series controllers (also compatible with FOXY G2 controllers) for aircraft is used for simple and quick programming of controllers - at home "on the table" as well as at the airport. The controller is connected using a servo cable, the socket is located on the top of the box. The card is powered by the BEC stabilizer of the KAVAN PRO controller or from a regular 4-5 cell NiCd/NiMH or 2S LiPo/LiFe receiver battery connected to the box (in the case of the OPTO controller). Programming is performed with the motor and drive battery connected (also in the case of OPTO controllers).

ATTENTION: The KAVAN PRO LED programming card cannot be used to program the first generation FOXY controllers and the first generation FOXY programming card cannot be used to program the KAVAN PRO controllers.

KAVAN PRO flight controllers can be programmed in a model with a mounted propeller - for safety reasons, we nevertheless recommend removing the propeller during programming - this will prevent a possible accident due to some omission or operator error. Also, program the controllers in cars and boats safely placed on a stand with the wheels or propeller in the air or with the pinion or ship shaft coupling removed.

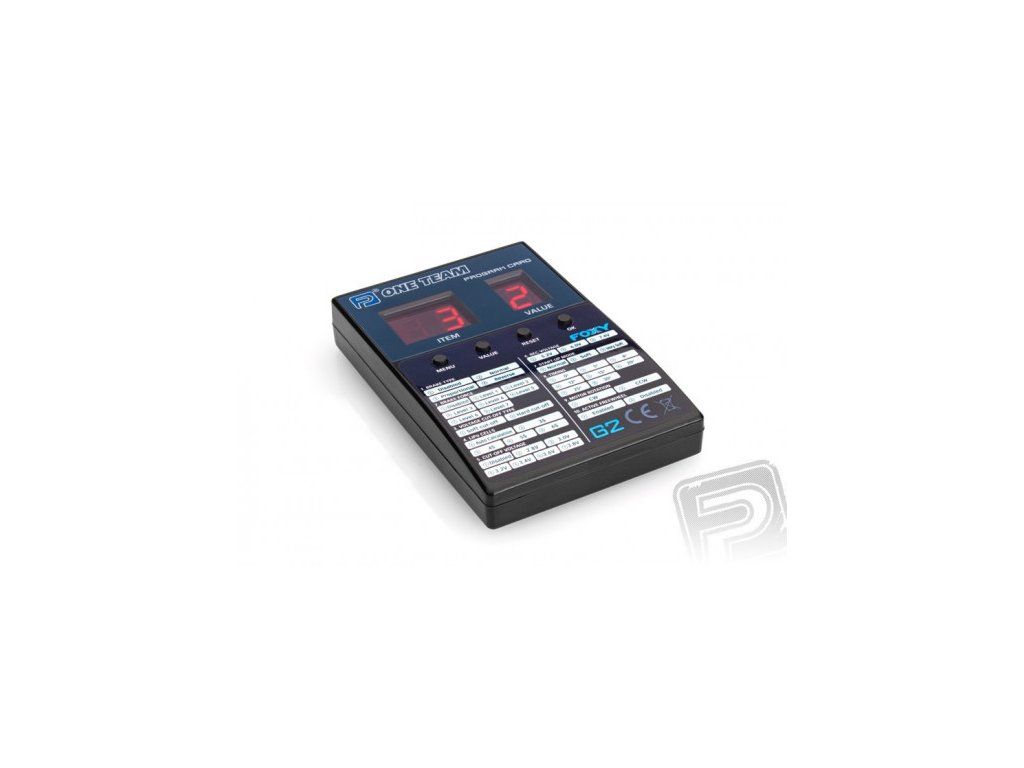

Four buttons on the front panel of the card are used for programming. With their help, you select the program functions ("ITEM") for adjustment and set their value ("VALUE"). The "OK" button confirms the change made and sends it to the controller, the "RESET" button is used to delete all settings and return all values ​​to the factory default settings. The program function number is displayed on the left on the two-digit LED display ("ITEM"), the function value is displayed on the right on the single-digit LED display ("VALUE").

The method of connecting the controller to the LED programming card depends on the type of controller - it varies depending on whether it is a controller with a BEC power stabilizer or an OPTO controller. When connecting, follow the instructions supplied with the card and your controller exactly.

The list of functions and adjustable values ​​is listed on the label on the card; a detailed description of the functions is provided in the instructions supplied with the FOXY G2 controllers.

The package includes: LED programming card KAVAN PRO, three-core programming cable, instructions.

Power supply [V] - 4.8 - 8.4
Length [mm] - 88
Width [mm] - 58
Height [mm] - 14
Weight [g] - 40
