SKY RC e455 charger

Product detailed description

The SKY RC e455 charger with built-in balancer is a very simple charger for recreational riders and pilots with mains power for charging 2-4S LiPo, LiFe, LiHV and 6-8 cell NiMH batteries. It is an ideal addition to "set" kits for easy charging at home or a great companion on the road. The charger's 50 W power is the same as the Equilibrium 3.5 or Raytronic C15 class display chargers; you can set the charging current to 1, 2, 3 or 4 A. During charging, the LED indicator indicates the charge levels of 25%, 50%, 75% and 100%.

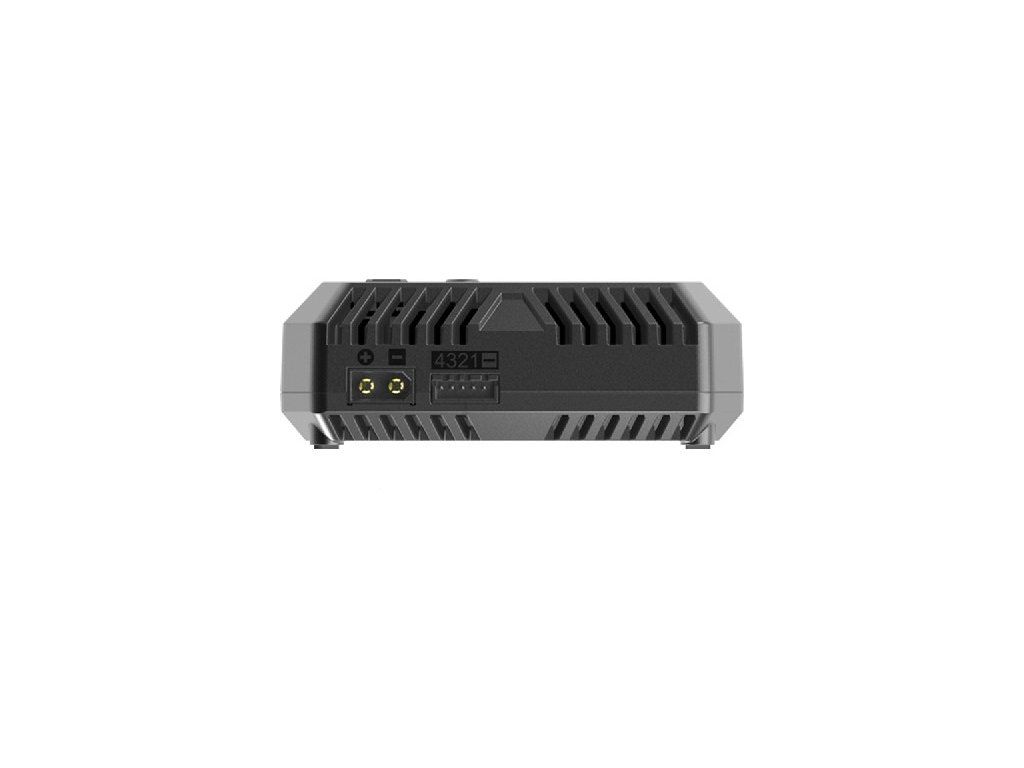

The battery to be charged is connected using power cables connected to the charger output (XT60 socket) and to the built-in balancer via a service connector; The charger is equipped with a universal balancer socket (2S, 3S, 4S) for JST-XH system connectors. To connect the set with a different service connector, you will need a corresponding adapter.

Basic functions

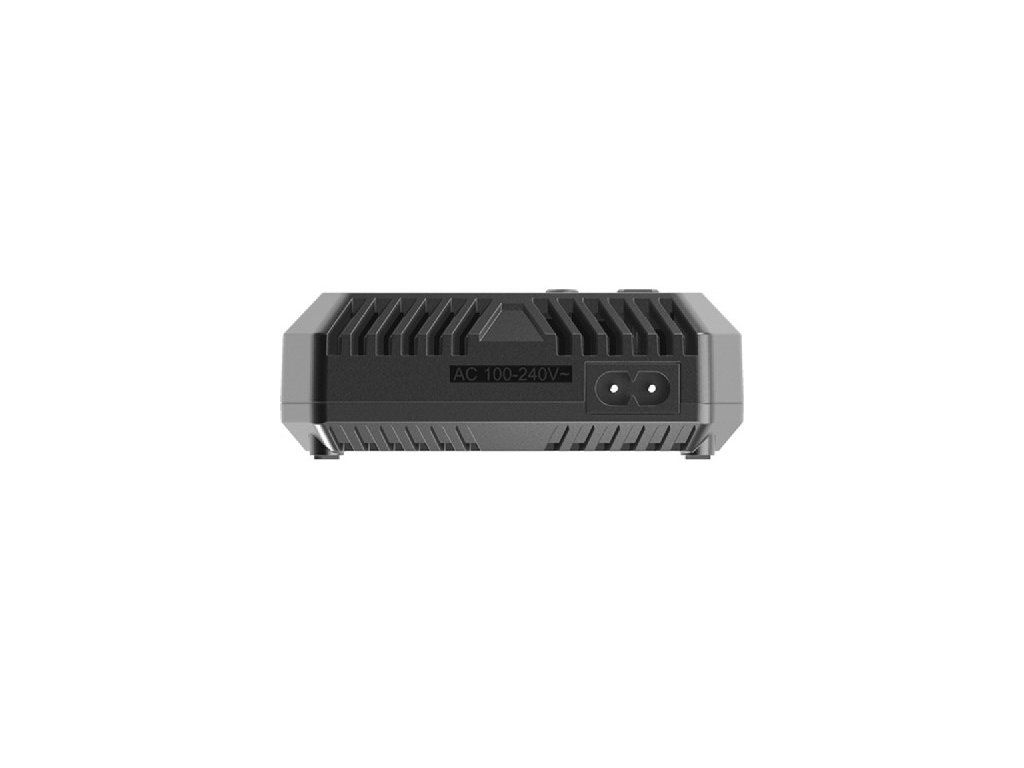

• Mains power supply 100-240 V/50-60 Hz
• For charging 2-4S LiPo/LiFe/LiHV cells or 6-8 NiMH cells
• Charging current switchable 1, 2, 3 or 4 A
• Max. charging power 50 W
• Charging method "constant current/constant voltage" LiPo/LiFe/LiHV, delta-peak detection for NiMH

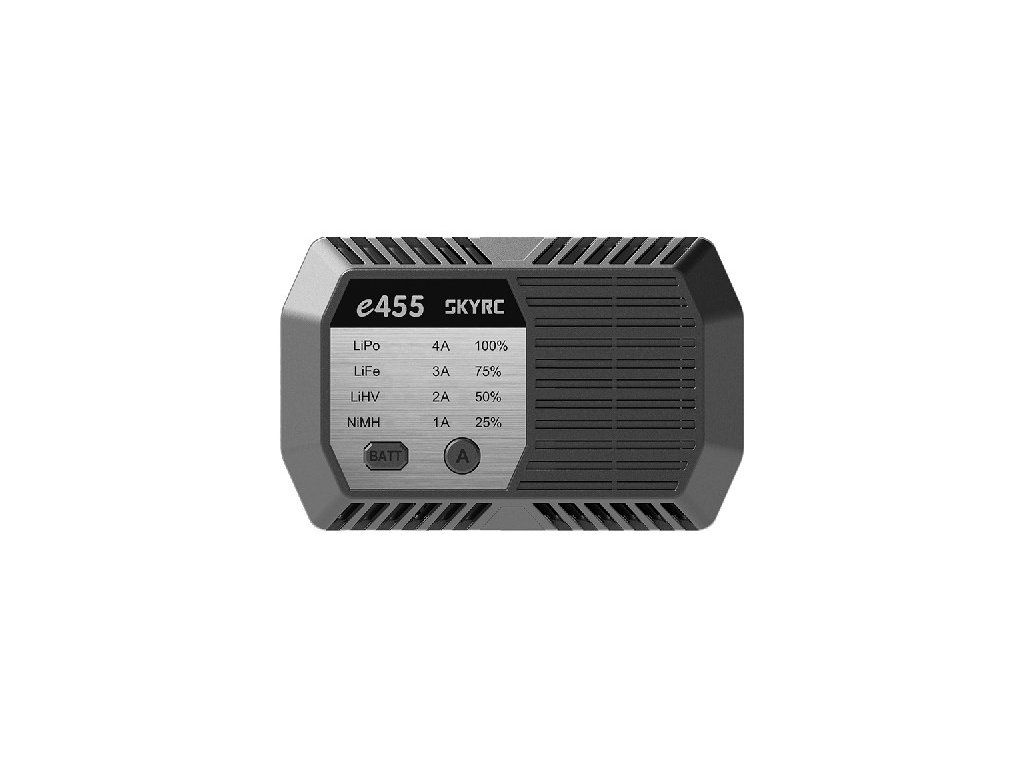

• Charger operating states signaled by LED diodes (charging current, charge status 25, 50, 75, 100%)
• Error status reporting (incorrect connection, excessive voltage of individual cells, cable break)
• Universal balancer socket JST-XH (2S, 3S, 4S) for LiPo/LiFe/LiHV
• Compact plastic case, pocket-sized

Package includes: SKY RC e455 charger, mains power cable, instructions.

Input voltage (mains - AC) [V] - 230
Charging current [A] - 1 - 4
Charging power [W] - 50
Li-Po [cell] - 2 - 4
Li-Fe [cell] - 2 - 4
Li-HV [cell] - 2 - 4
NiMH [cell] - 6 - 8
Balancer - Yes
Balancer current [mA] - 300
Length [mm] - 110
Width [mm] - 70
Height [mm] - 40
Weight [g] - 191
