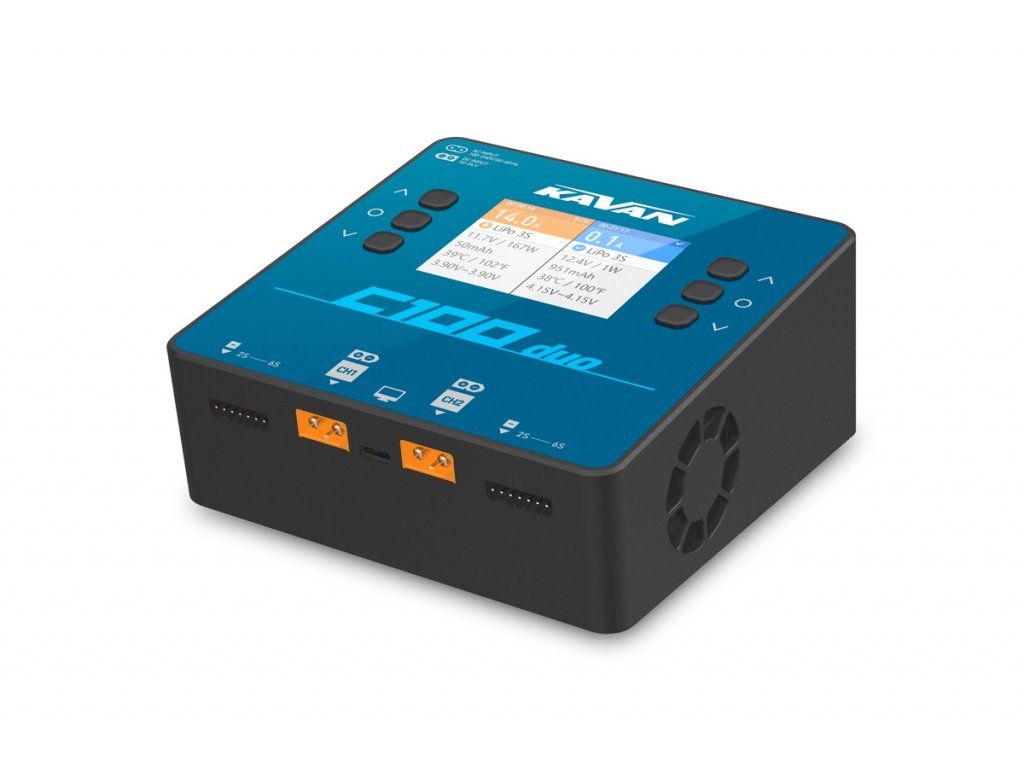

Kavan C100 Duo charger with balancer 2x 500W

Product detailed description

Small dual-channel charger KAVAN C100 Duo 2x500W designed with the aim of offering an intelligent charger with high power, powered by both the mains and the car battery, and very simple and clear operation. C100 Duo allows you to charge and discharge common types of cells (NiCd, NiMH, LiPo, LiHV, ULiHV, Li-ion, LiFe, Pb), in addition, it is equipped with built-in six-channel balancers that ensure safe charging of lithium batteries. The charger is equipped with a color LCD display and programming buttons that will provide you with the possibility of comfortable and very clear parameter setting, control and monitoring of the charging/discharging process. Of course, Czech is also included among the selectable menu languages.

In addition to the compact design in the size of a "palm" and intuitive operation, it is worth mentioning:

• Program for new types of "high-voltage" lithium batteries LiHV with a final charging voltage of up to 4.35 V and ULiHV with a final charging voltage of 4.45 V
• Powerful balancer with a current of up to 1.5 A
• Possibility of synchronous operation of both channels for charging two identical batteries or parallel charging of one battery with a power of up to 800 W
• Adjustable final charging and discharging voltage for lithium batteries (allows for more gentle charging, which is popular with pilots, or, conversely, brutal overcharging, which is popular with "car enthusiasts")
• Adjustable final charging voltage for lead-acid batteries (1.90-2.45 V; allows charging of all types of lead-acid batteries)

Overview of basic functions and parameters

• Mains power supply 100-240 V/50-60 Hz

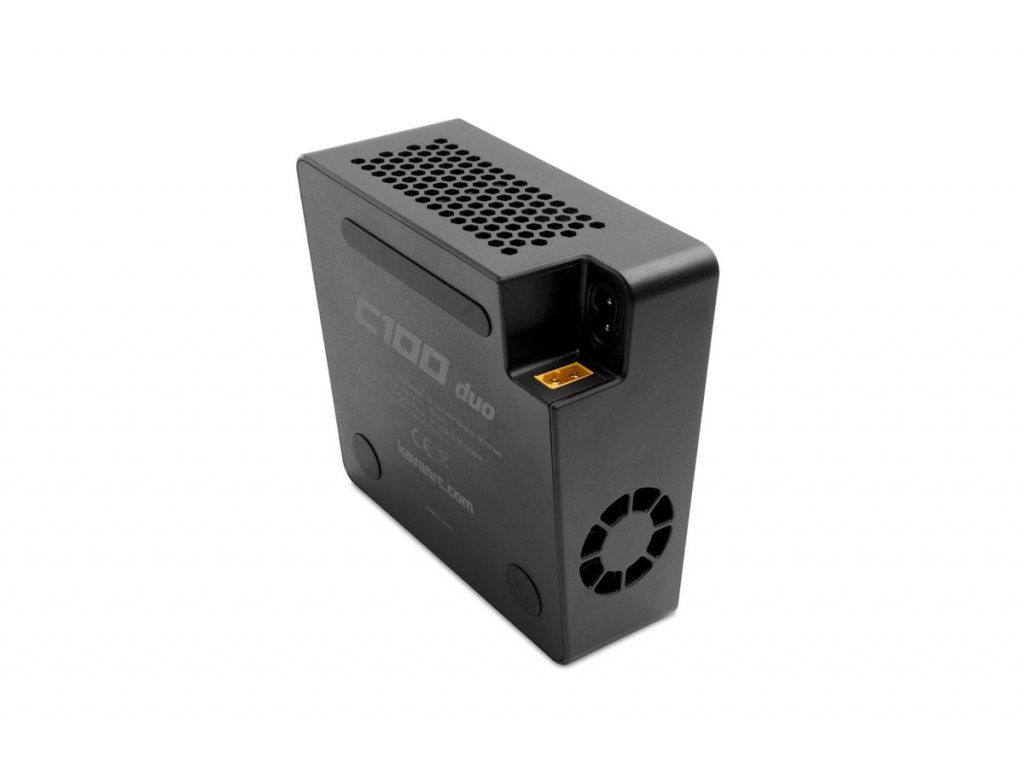

• 10-30 V DC power supply (XT60 connector)
• For charging and discharging 1 - 16 NiCd/NiMH cells, 1 - 6 Li-ion/Li-poly/Li-Fe/LiHV/ULiHV cells or 2-24 V lead-acid batteries
• Adjustable charging current (0.2 A - 20.0 A) in each channel (max. 100 W when powered by mains, max. 500 W when powered by a car battery or a powerful stabilized mains supply - to fully utilize the charger's power, the power supply must have a voltage higher than 24 V)
• Adjustable discharge current 0.2 A - 1.5 A in each channel
• Max. charging power 1x 800W in parallel charging mode
• Max. discharging power 2x 15 W, max. 1x 30 W in parallel discharging mode
• End of charging using automatic delta-peak for NiCd and NiMH batteries
• Lithium and Pb batteries are charged using the "constant current/constant voltage" method
• Adjustable delta-peak detection sensitivity for NiCd and NiMH batteries
• Adjustable end voltage for charging and discharging for lithium and lead batteries
• Three modes for lithium batteries - charging, discharging and storage charging/discharging; all with or without a balancer. And a disposal discharge mode for safe discharge of a discarded battery before it is handed over for recycling
• The CH1 channel can work as a stabilized power supply with an adjustable voltage of 2-30 and a current of 1.0-5.0 A
• Easy firmware update using the USB-C port
• Backlit color LCD display with a simple and clear menu and displaying parameters during charging/discharging
• Programming buttons for simple and clear settings and control of the charger
• A number of warning messages contribute to safe operation - incorrect input voltage, poor connection, unsuitable battery or its condition, etc.
• Forced cooling fan.
• Compact plastic case, small dimensions

The charger is equipped with XT60 output sockets and universal sockets for JST-XH service connectors in both channels, allowing direct connection of battery power cables and JST-XH service connectors of 2-6S kits - if you use kits with XT60 and JST-XH connectors, you can do without charging cables altogether. To connect the service connectors of other systems, you can use standard Sky RC or RC System adapters.

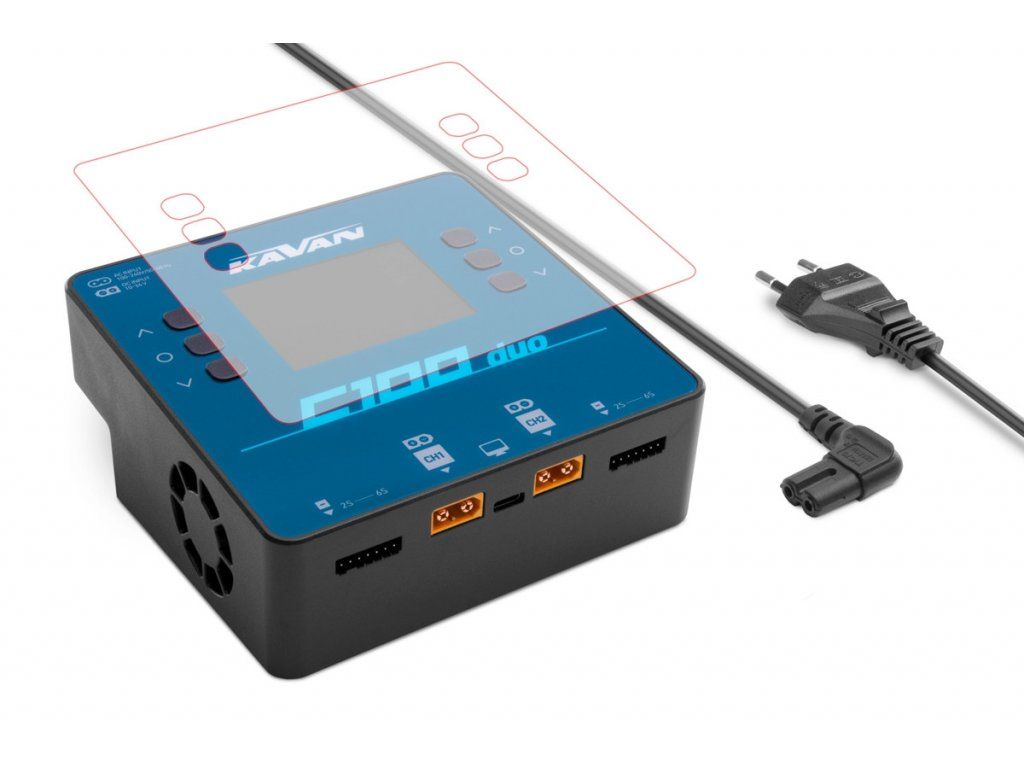

Package includes: KAVAN C100 Duo charger, instructions.

Input voltage (car battery - DC) [V] - 10 - 30
Input voltage (mains - AC) [V] - 100 - 240
Charging current [A] - 0.2 - 20
Charging power (mains power) [W] - 100
Charging power (DC-car battery power) [W] - 500
Discharge current [A] - 0.2 - 1.5
Discharge power [W] - 15
Number of channels - 2
NiCd [cell] - 1 - 16
NiMH [cell] - 1 - 16
Li-Po [cell] - 1 - 6
Li-Ion [cell] - 1 - 6
Li-Fe [cell] - 1 - 6
Li-HV [cell] - 1 - 6
Pb [cell] - 1 - 12
Balancer - Yes
Balancer current [A] - 1.5
Length [mm] - 142
Width [mm] - 135
Height [mm] - 64
Weight [g] - 700
