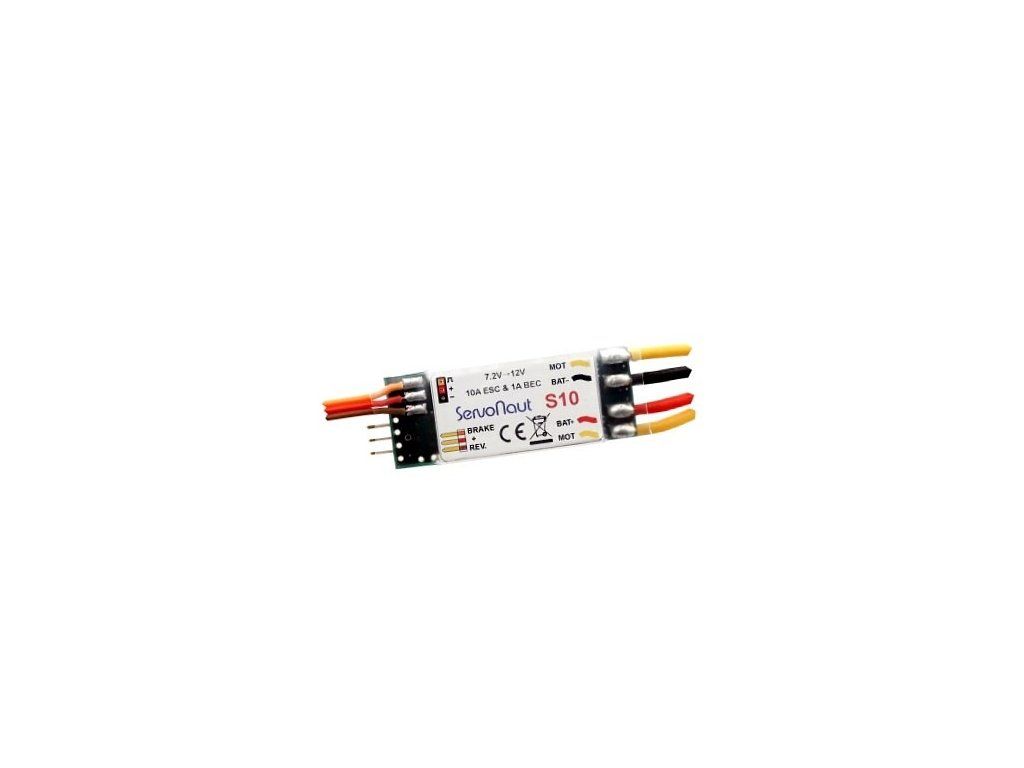

Servonaut S10 electric controller for 1/16 cars and 1/14
Code: 6640772
Related products
Product detailed description
Servonaut S10 controller is specially developed for use in:
- Small models in 1/24 scale
- 1/16 to 1/14 passenger car models
- Models powered by one or two motors with RB35 series gearbox
The Servonaut S10 controller is a small bidirectional controller for electric motors up to 10A. The undervoltage protection (LiPo-Saver) is automatically set to 7.2V (LiPo 7.4V) or 12V (LiPo 11.1V).
ATTENTION: Only 6 or 10 NiMH cells or 2 or 3 LiPo cells can be used. The controller is equipped with an output for LED for reverse gear and brake lights. In the event of low battery voltage, excessive current consumption, high controller temperature or interference at the 40MHz frequency, the model is automatically braked and stopped. 5V BEC allows powering common RC accessories up to a total draw of 1A. Includes 2 LEDs for diagnostics indicating error messages.
Supply voltage: 7.2V or 12V (6 or 10 cells NiMH, respectively 2-3LiPo)
Maximum current: 10A
BEC: 5V / 1A
Dimensions: approx. 55 x 19 x 7 mm
Protections: current, temperature overload, voltage undervoltage
Caution, this product is not waterproof.
Additional parameters
| Category: | Regulators (brushed) |
|---|---|
| Warranty: | 2 years |
| EAN: | 4260589861331 |
