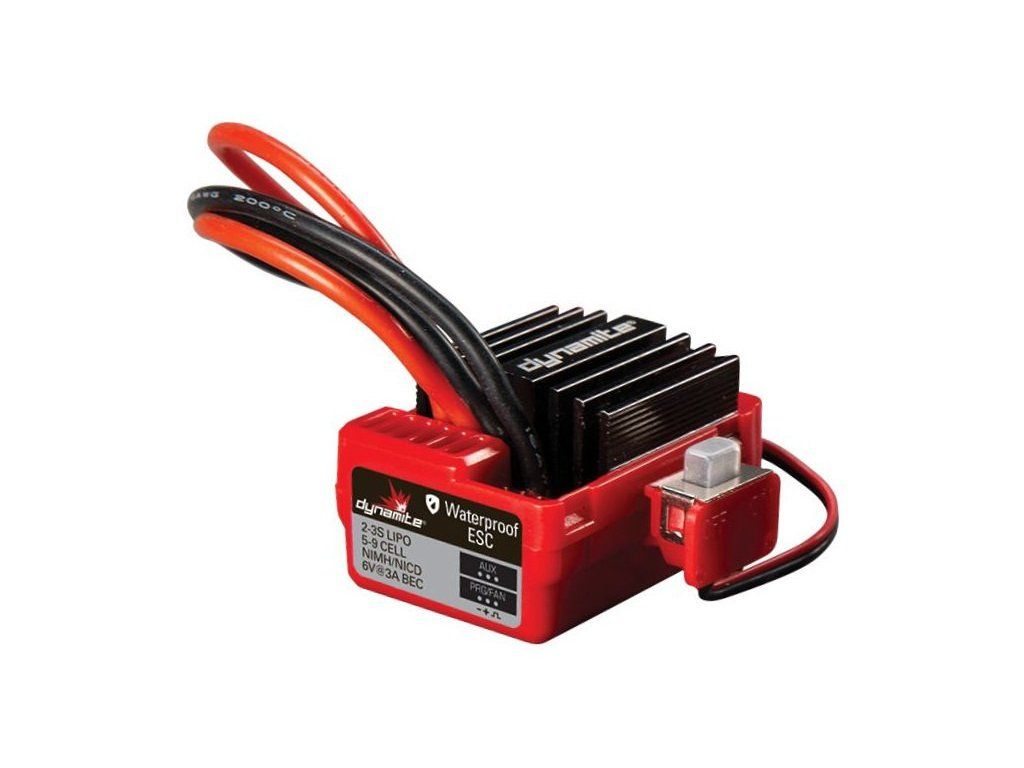

Electronic controller Dynamite Crawler 40A waterproof

Product detailed description

The DYNS2214 controller is a compact, DC waterproof controller that can be powered by 7.2V - 11.1V, 2-3S Li-Pol or 6-9 cells NiMH/NiCd.

Dimensions: 46.5x34x28.5mm
Weight: 68g
BEC: 6V/3A
Current load constant: 40A
Max. short-term: 180A
Connector: EC3

The controller can be programmed with the optional DYNS3005 programming card. You can program the driving mode, battery type, cut-off voltage, power level, brake force, neutral travel, PWM frequencies. Automatic calibration of the throttle travel after power-on.

Note on water resistance: A product marked by the manufacturer as waterproof (WP, waterproof, water resistance) is usually able to withstand short-term exposure to splashing water, for example, running through a puddle, short-term driving on wet grass, in light rain, in snow, etc. ATTENTION! Waterproof does not mean watertight! A waterproof product is not able to withstand the effects of a higher column (pressure) of water, which means that it is not possible to immerse such a product under the water surface. To achieve watertightness in the case of a waterproof product, it is recommended to either use, for example, Nanoprotech, or place the device in a perfectly sealed package.
Only products clearly marked as watertight with manufacturer-guaranteed watertightness to a clearly marked immersion depth (water column, water pressure, etc.) can be submerged for an extended period of time under water.
