Carson FS 3K Reflex Wheel PRO3 LCD 2.4GHz Transmitter

Product detailed description

Steering wheel 3-channel RC set in the 2.4 GHz band with FHSS transmission suitable for controlling RC car and boat models. Ergonomic adjustable handle. Steering precision is increased by the use of ball bearings on the steering wheel. The receiver supports power supply up to 11V, when using powerful HV servos suitable for large petrol-powered cars.

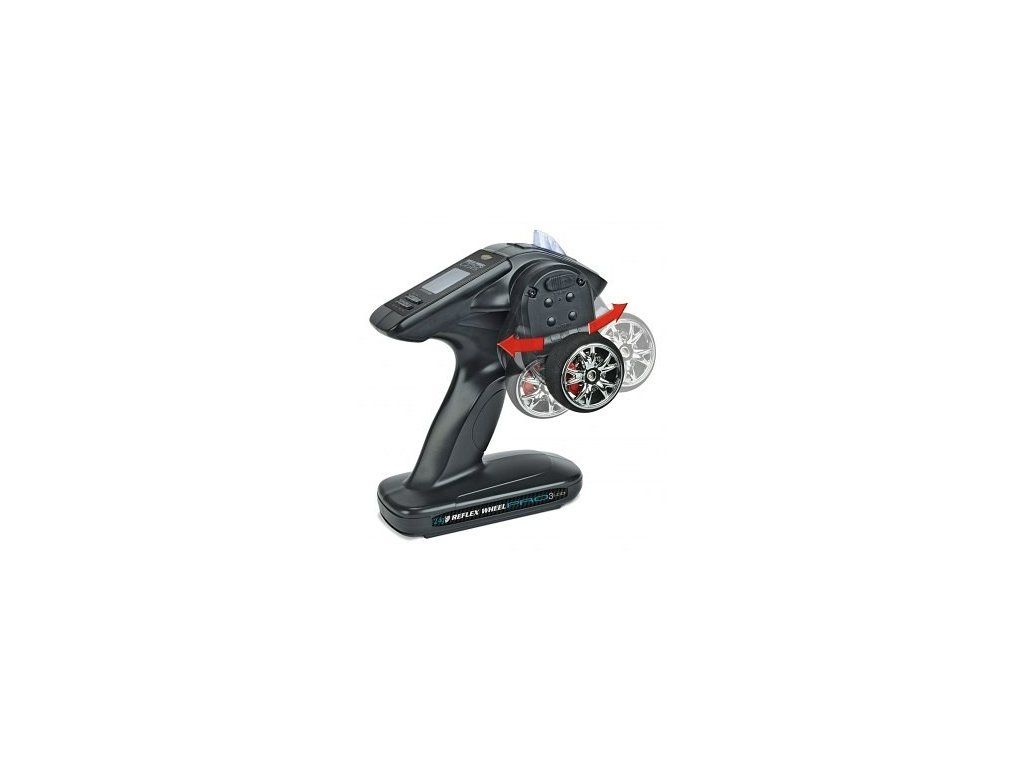

The Reflex Wheel Pro III LCD is an innovative RC system (3rd generation) from Carson-Model Sport. This professional 3-channel remote control system offers many setting options that can be conveniently changed using the function buttons. The data is easy to read on the blue illuminated LCD display. The steering angle and servo travel are adjustable (dual rate). This allows each model to be very sensitively controlled and adapted to your imagination. In addition, the throttle can be limited for beginners and children. The steering wheel with a foam rubber surface allows precise control and the steering arm can be tilted forward or backward. The included receiver can be powered up to 11.1 V. Therefore, it is possible to operate HV (high voltage) servos and, ideally, models with gasoline engines.

Pairing the transmitter with the receiver:
1. Turn on the receiver
2. Press the Bind button
3. Turn on the transmitter and you're done!

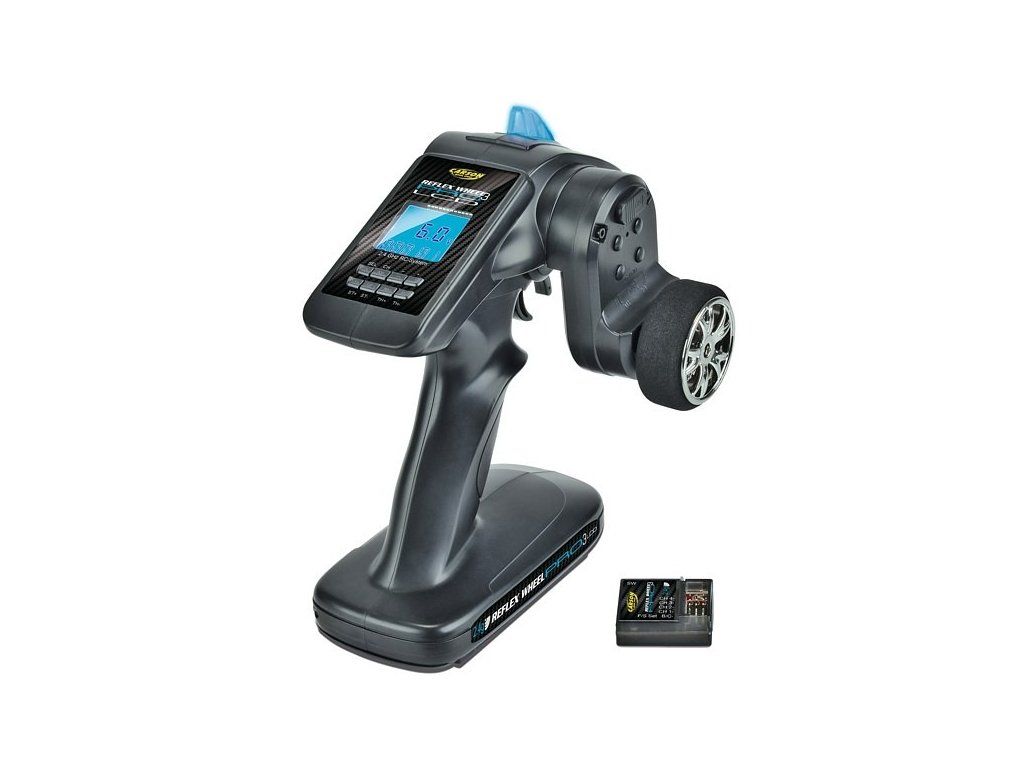

Package contents: 3-channel 2.4 GHz transmitter, 4-channel receiver with FailSafe, manual

Technical details:

• Memory for 15 models
• Transmitter operating voltage 4.8 to 6 V
• Operation with optional Li-Ion battery or 4x AA NiMh cells
• FHSS system with 2.4 GHz frequency (frequency spectrum expansion)
• Two continuously adjustable fully proportional channels
• Additional switching channel for special functions
• Dual-rate for throttle and steering channels
• Reverse function for throttle and steering channels
• Trims for throttle and steering channels
• EPA (end point settings) for throttle and steering channels
• ABS function = brake control (brake servo oscillation) for throttle channel
• EXPO function for throttle and steering channels (Exponential)
• Receiver power supply (without BEC) possible up to 11.1 V
• Integrated Failsafe
• Connector system for Futaba and Graupner-J/R
• Charging socket (plus inner pole)
• BEC-TAMIYA KIT compatible

Recommended accessories:
Replacement receiver: 500501533, or 500501534, 500501535 and 500501536. 500609043 Mignon battery set (4) or 500608153 transmitter battery Li-Ion 3.7V / 1800mAh
