Carson Reflex Wheel Start 3-channel Black 2.4GHz Transmitter

Product detailed description

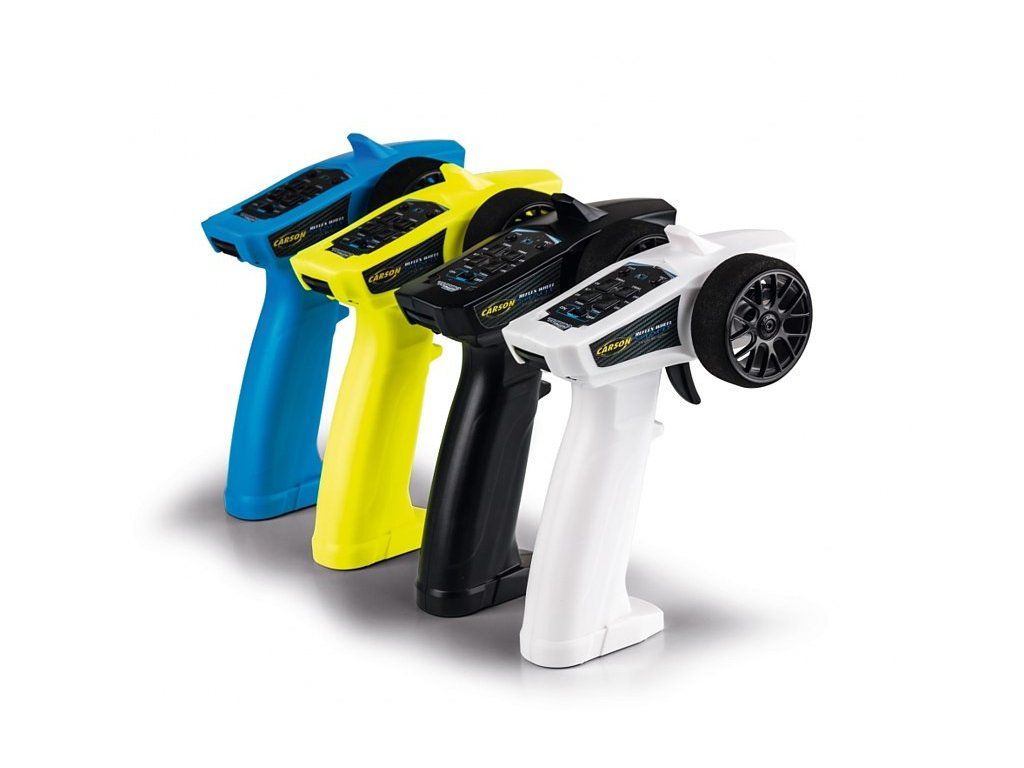

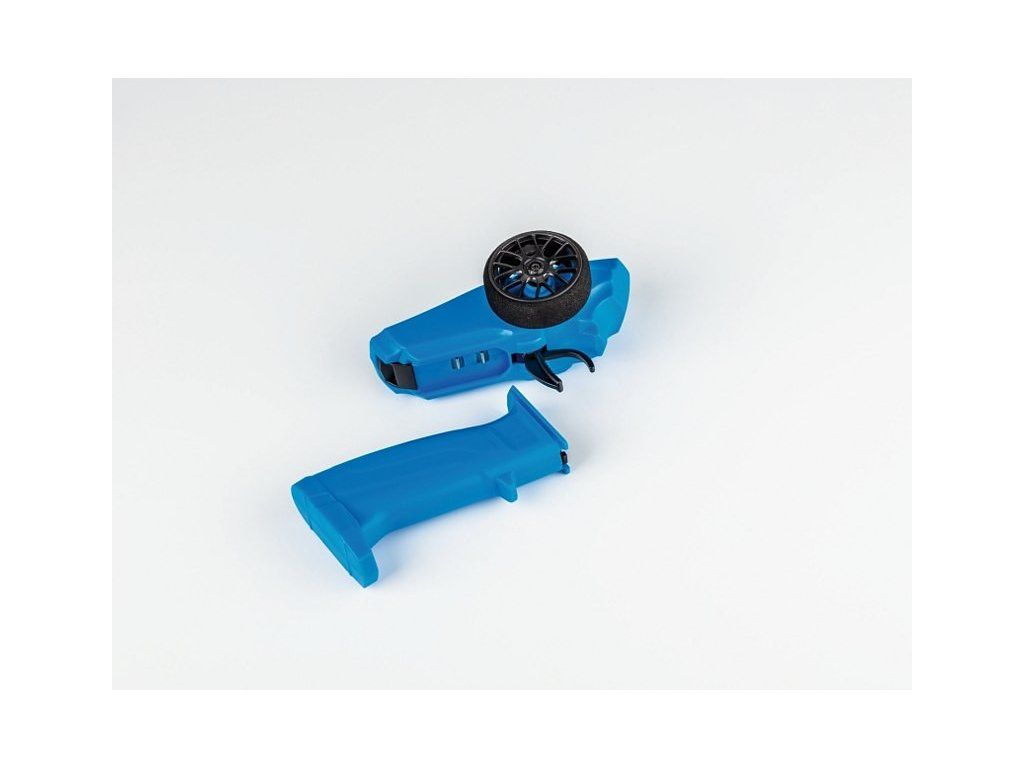

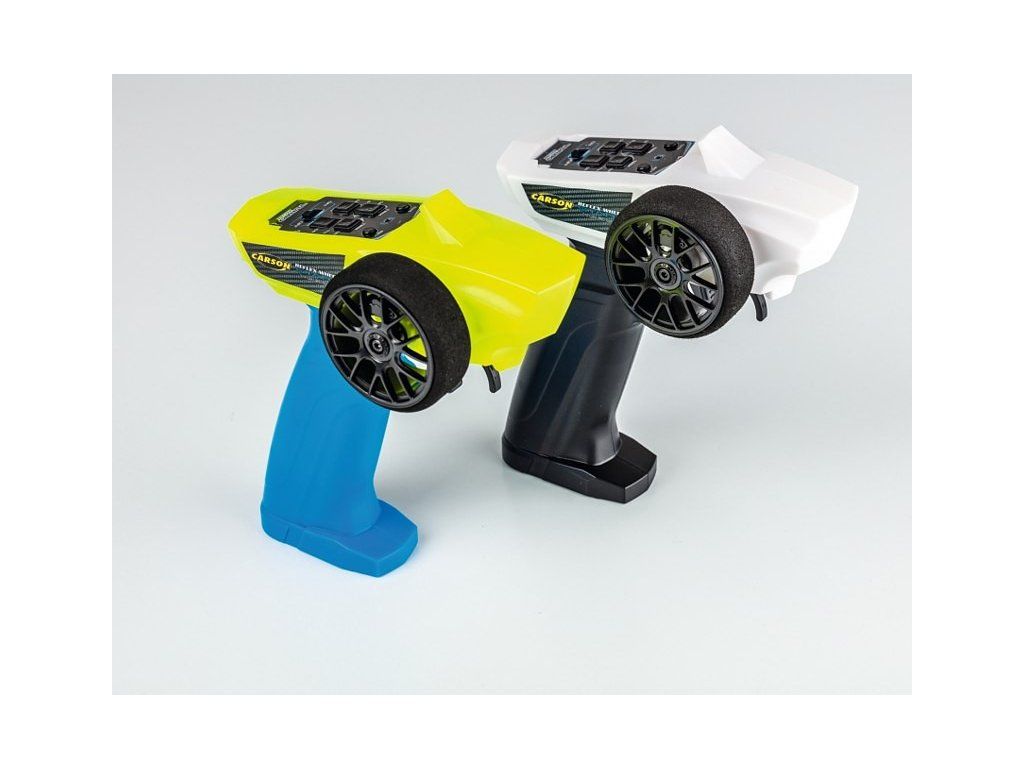

3-channel steering wheel RC set with removable handle to save space. Available in 4 color variants. The handles can also be combined with each other and thus create different color combinations, e.g. with friends.

The transmitter is also adapted to a smaller hand and is therefore comfortable for young modelers.

• Transmitter operating voltage 4.8 - 6V
• Two fully proportional channels
• Servo reverse for both channels (reversal of movement deviations)
• Rrim for throttle and steering channels
• Dual Rate for both channels (servo travel limitation)
• Receiver power supply (without BEC) up to 11 V
• Integrated Fail-Safe
• Connection for Futaba and Graupner-J/R
• LED battery status indication
• Compatible with TAMIYA KIT

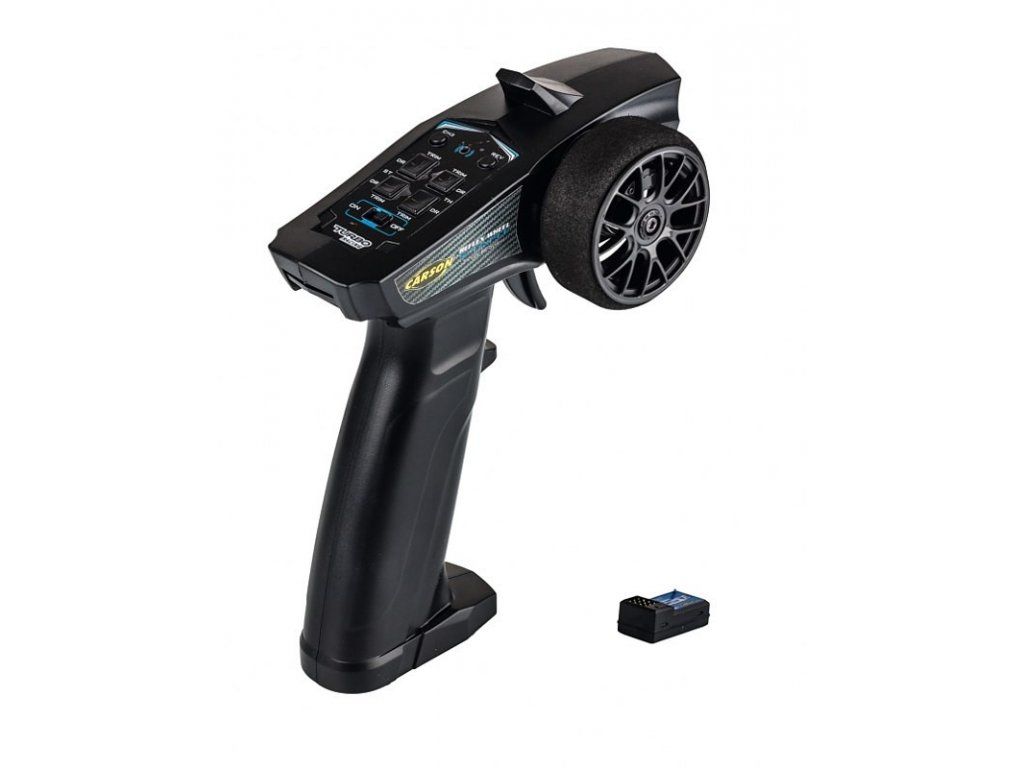

Package contents: 3-channel steering wheel transmitter, 3-channel miniature receiver

Need to purchase: AAA (micro) batteries for the transmitter

The transmitter has a Dual rate function - setting the maximum range of servo movement (channel 1) or throttle (channel 2). The function is activated by turning the transmitter steering wheel fully to the extreme position and using the ST + or ST - trim button to set the desired range of movement of the steering servo. The maximum throttle can be set in the same way, press the transmitter trigger fully and use the TH + or TH - trim button to set the desired throttle range.

Pairing with the Carson Reflex Wheel Start receiver:
1. Plug the receiver into the model, connect the ESC controller and servo to it. Do not use a separate receiver battery!
2. Keep the model and transmitter turned off.
3. The distance between the receiver and the transmitter should not be more than 40 cm during pairing.
4. Make sure that no other transmitter is turned on nearby.
5. Turn on the model and press the BIND button on the receiver. The LED will flash.
6. Turn on the transmitter.
7. After a few seconds, the LED on the receiver will stop flashing and remain lit continuously. Pairing is complete.
