Tamiya TBLE-04SR brushless/brushed ESC

Product detailed description

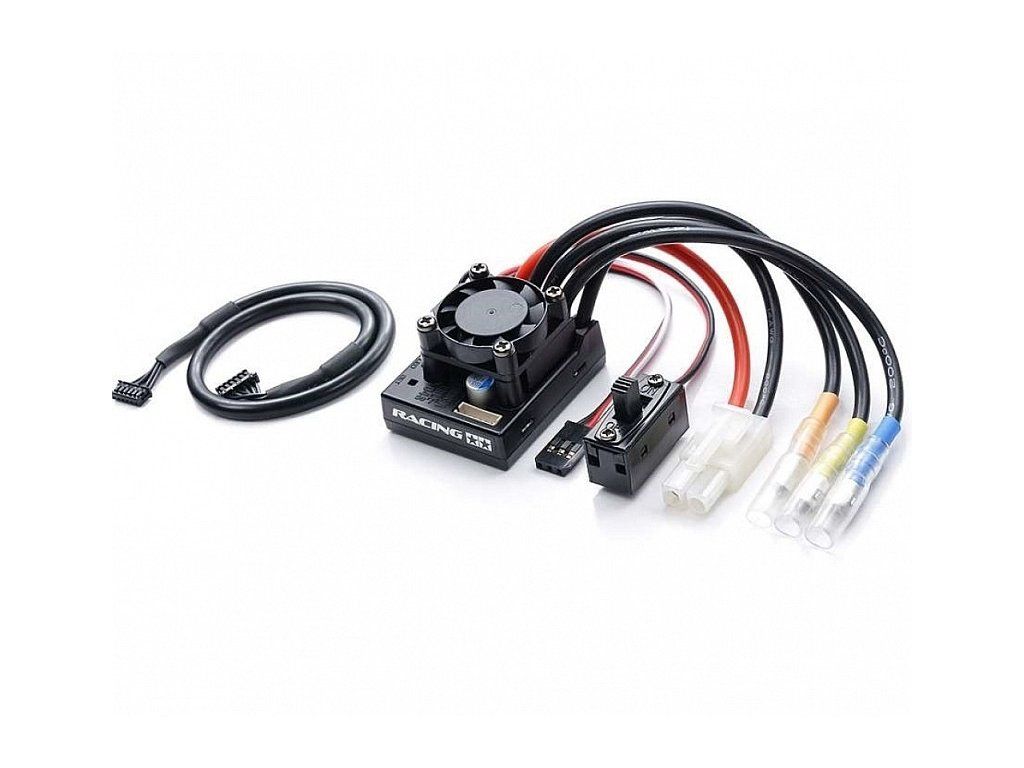

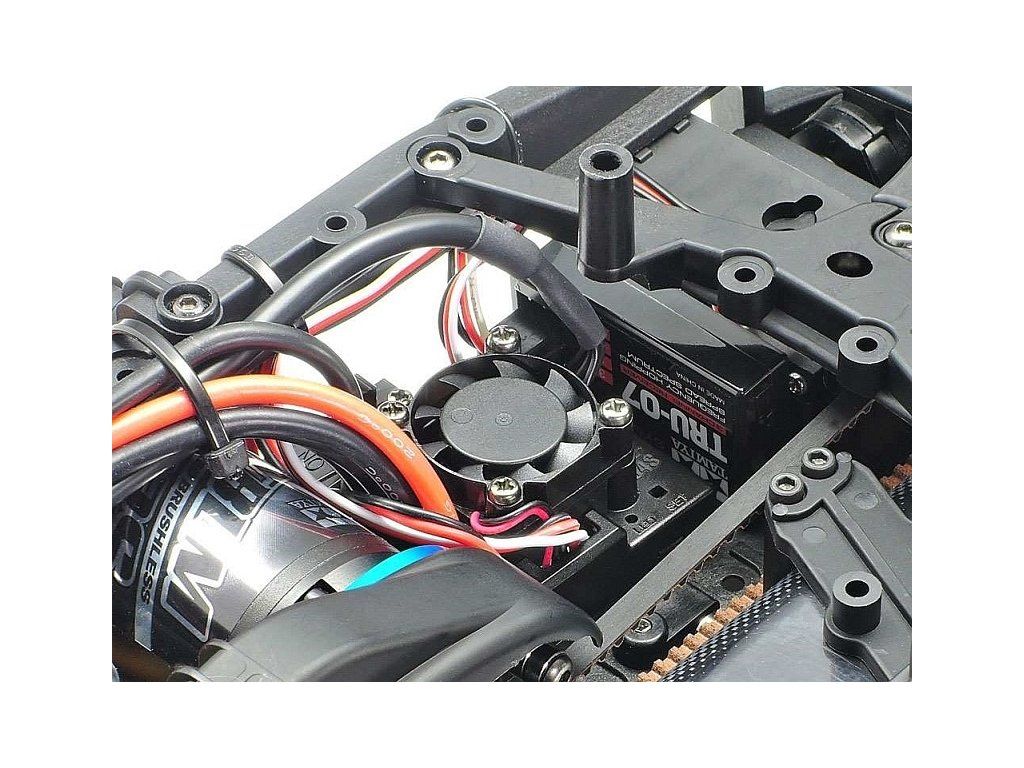

Electronic motor speed controller for RC car models. Capable of working with both brushed and brushless electric motors.

• Sensored brushless ESC detects motor rotor positions with high accuracy, allowing for more efficient power supply and smoother motor response.
• Compatible with Tamiya brushless motors (sensored) and Tamiya brushed motors with 23 or more turns.
• Choose from 10 different settings for neutral brake and standard brake to achieve the settings exactly how you want.
• Includes overheating and overload protection features to help prevent damage to your ESC.
• Weight: 56g (including cables)
• Compatible with Ni-Cd, Ni-MH and Tamiya Li-Fe batteries.
• Dimensions: 41.5 x 33.4 x 27 mm

Status indication:
The LED remains off when the throttle trigger is in the neutral position, and lights up when the trigger is moved forward or backward. When the trigger reaches full throttle or full brake, the LED turns off.

Programming procedure
There are 2 procedures for setting the different functions, depending on which set of functions you want to set.

Connect the ESC as shown in the diagram in the manual, and always make sure that the model cannot move during the setting, by placing it in a position where the wheels will not be in contact with the ground.

If the motor is connected, a beep will sound when the ESC is turned on.

A. When the transmitter and receiver are already on, hold down the SET button. The LED will light up in the order of red + green + orange + red and so on. Wait for the color you want, then release the button.

1. LED lights red - End point setting
2. LED lights green - Neutral brake setting
3. LED lights orange - Brake setting

B. Turn on the receiver and simultaneously hold down the SET button on the ESC. The LED lights up in the order red + green + orange + red and so on. Wait for the color you want and then release the button.
4. LED lights red - Reverse setting
5. LED lights green - Battery cut-off voltage setting (Li-XX / Ni-XX)
6. LED lights orange - Motor mode setting (brushed / brushless)
