Sky RC DC Power Distributor with banana plugs

Product detailed description

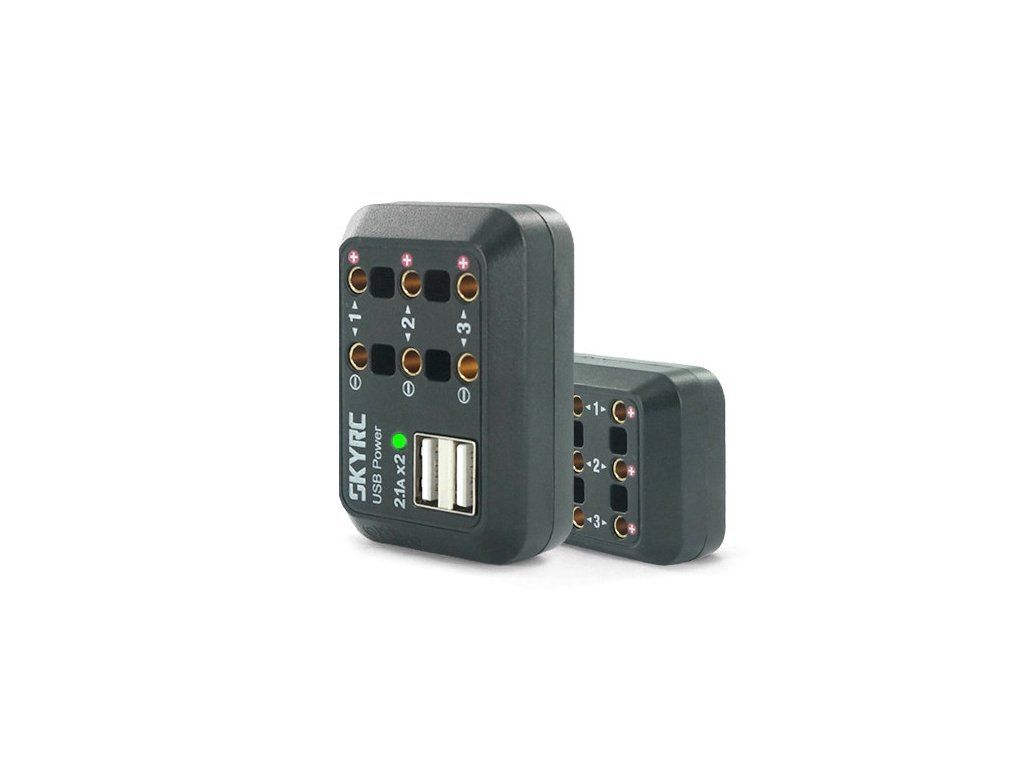

Miniature three-channel multiple socket for stabilized power supplies 6-18 V (total max. 10A) with sockets for 4 mm banana plugs, LED indicator and two USB 5V / 2.1 A power outputs. Ideal accessory for simultaneous power supply of several smaller 12V appliances from one source. Power cable with 4 mm banana plugs.

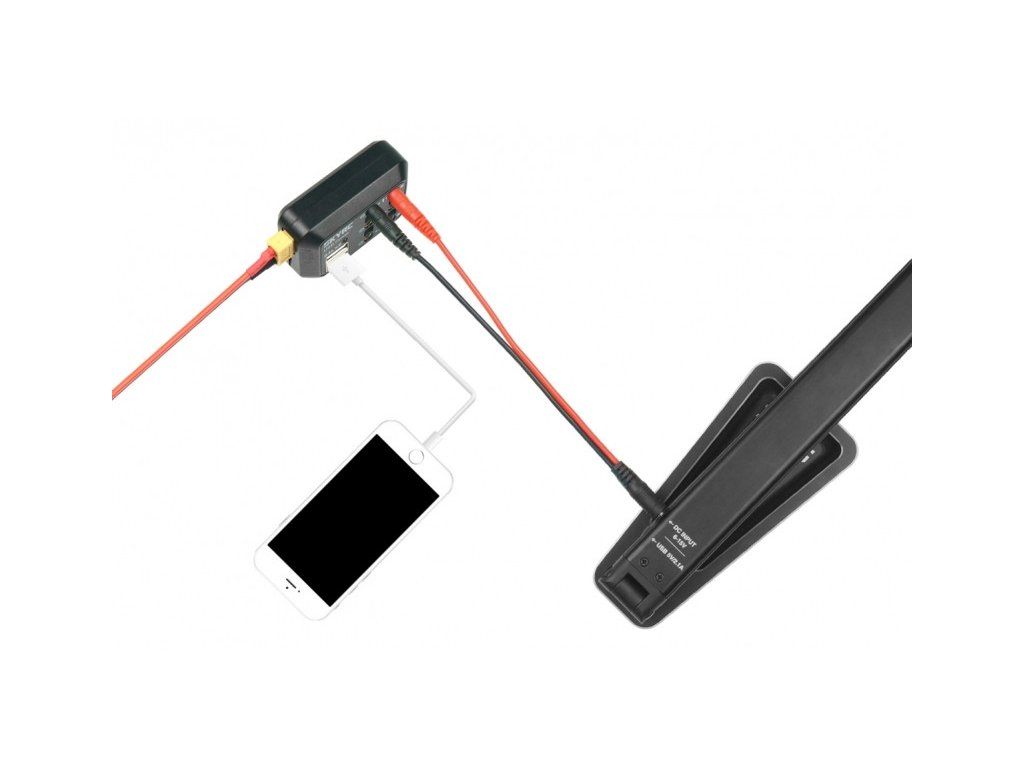

The DC Power Distributor multiple socket simply solves the problem of having to connect multiple appliances to the output of one power supply (6-18 V). It is a practical accessory for your workshop and for the workbench in the pit at races.

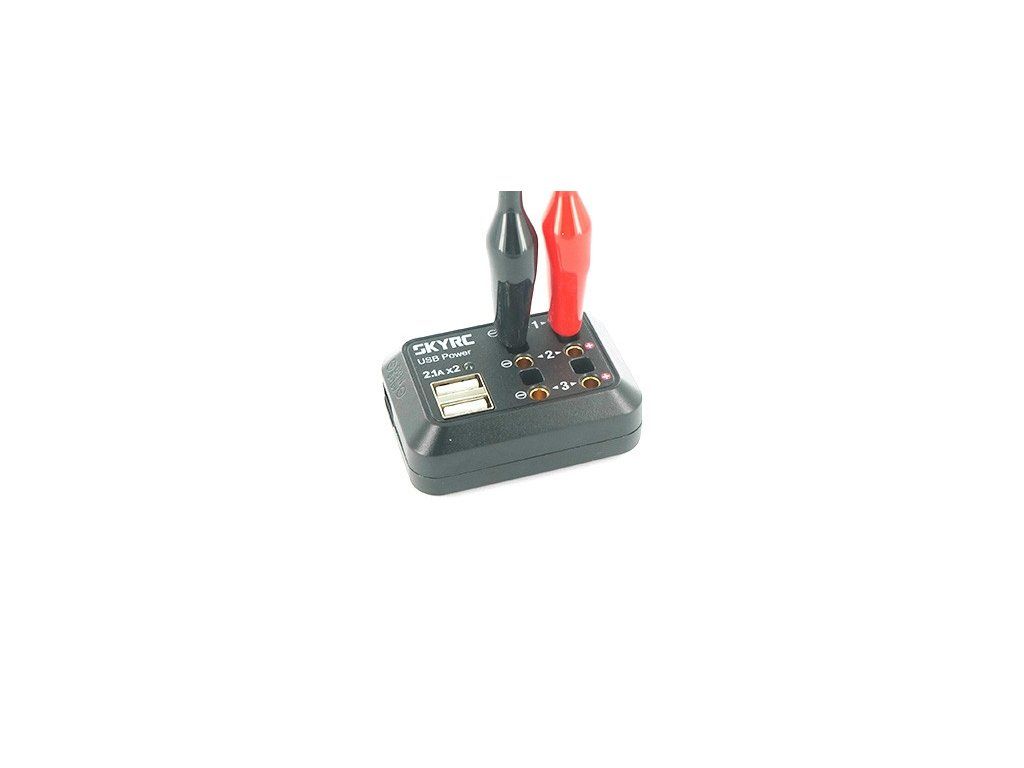

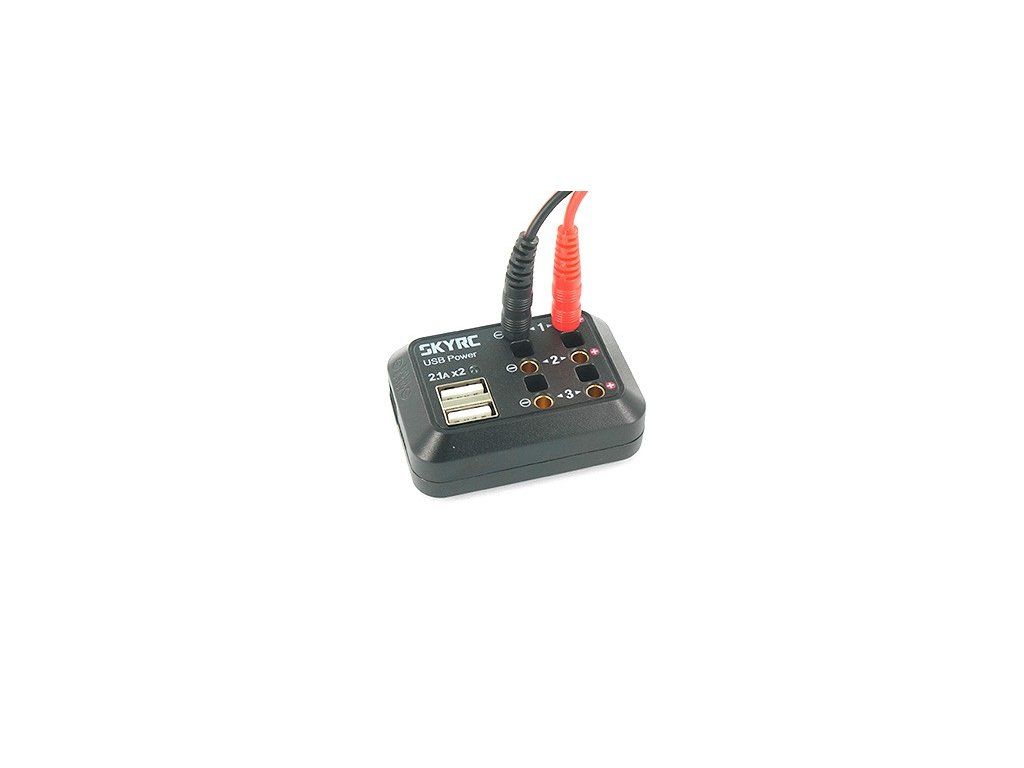

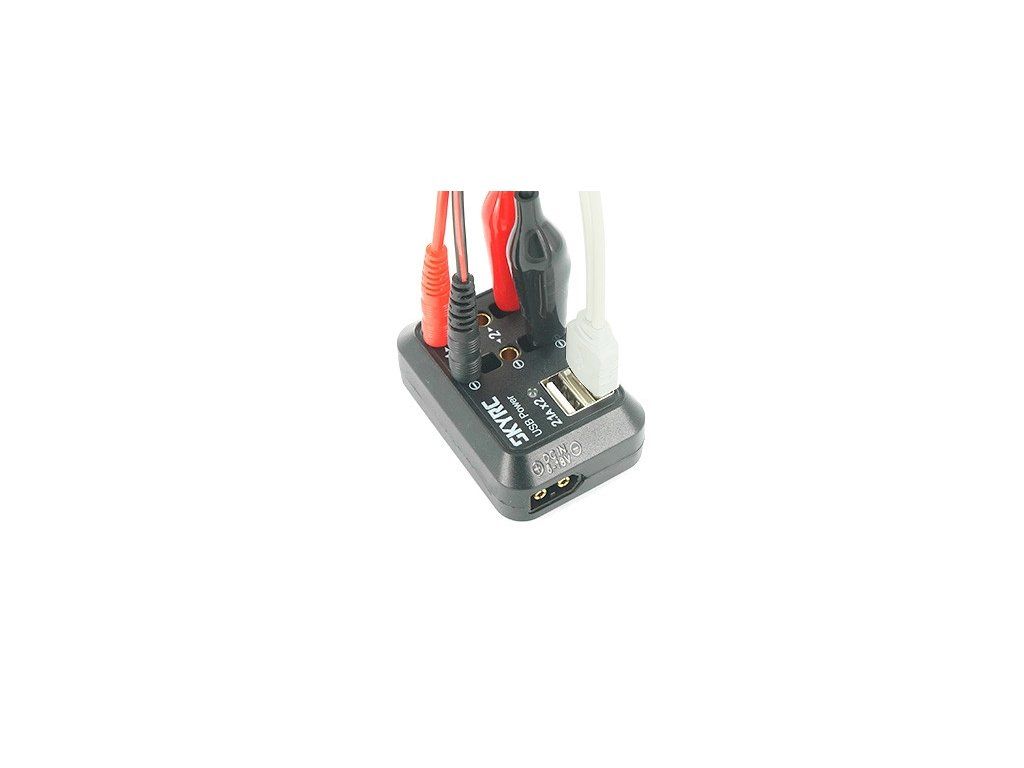

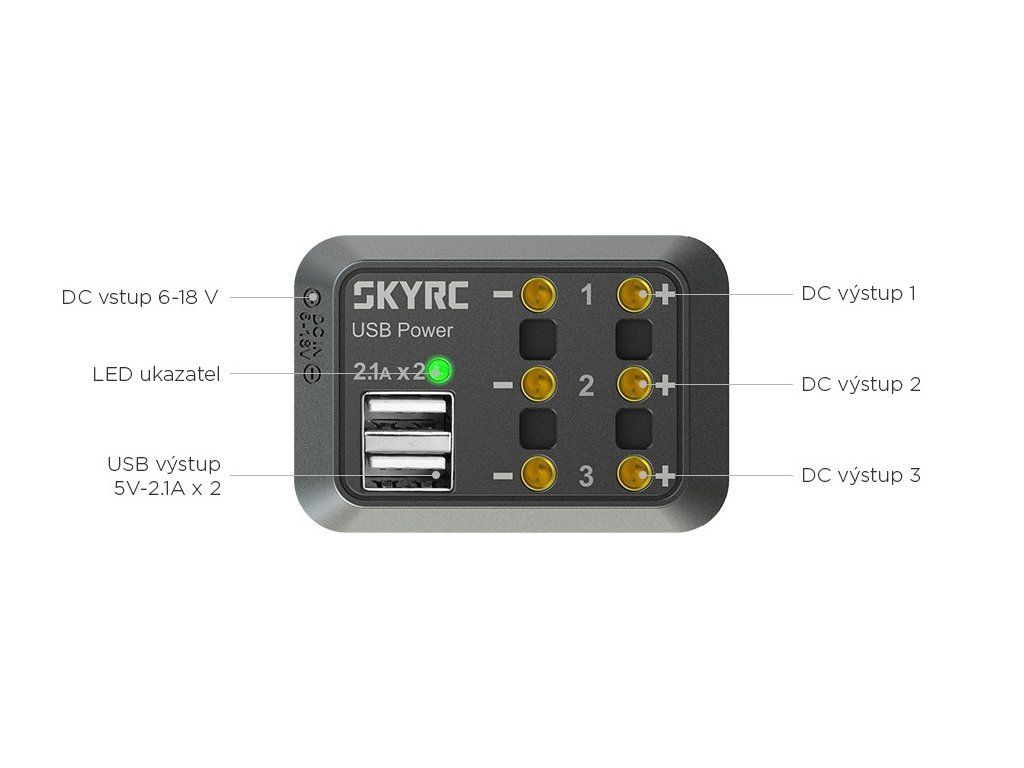

You simply connect the DC Power Distributor with a 250 mm long power cable with 4 mm gold-plated banana plugs to the output of your power supply (6-18 V). The multiple socket now offers you the possibility of connecting appliances to 3 pairs of banana holes; the presence of supply voltage is indicated by a green LED. The recesses between the holes allow you to connect appliances not only with a banana plug cable, but also with small crocodile clips. The total current consumption of the appliances is max. 10A.

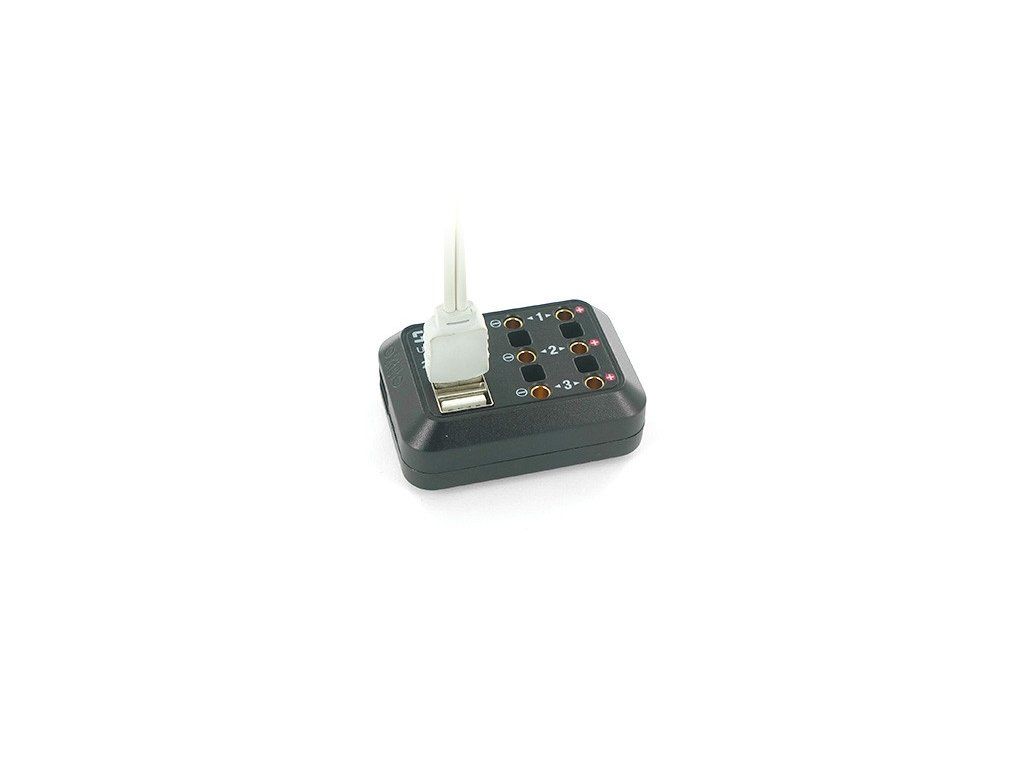

In addition to the banana plugs, the DC Power Distributor has two USB outputs - a 5V / 2.1A power socket for powering / charging tablets, smartphones, digital cameras and cameras, etc.

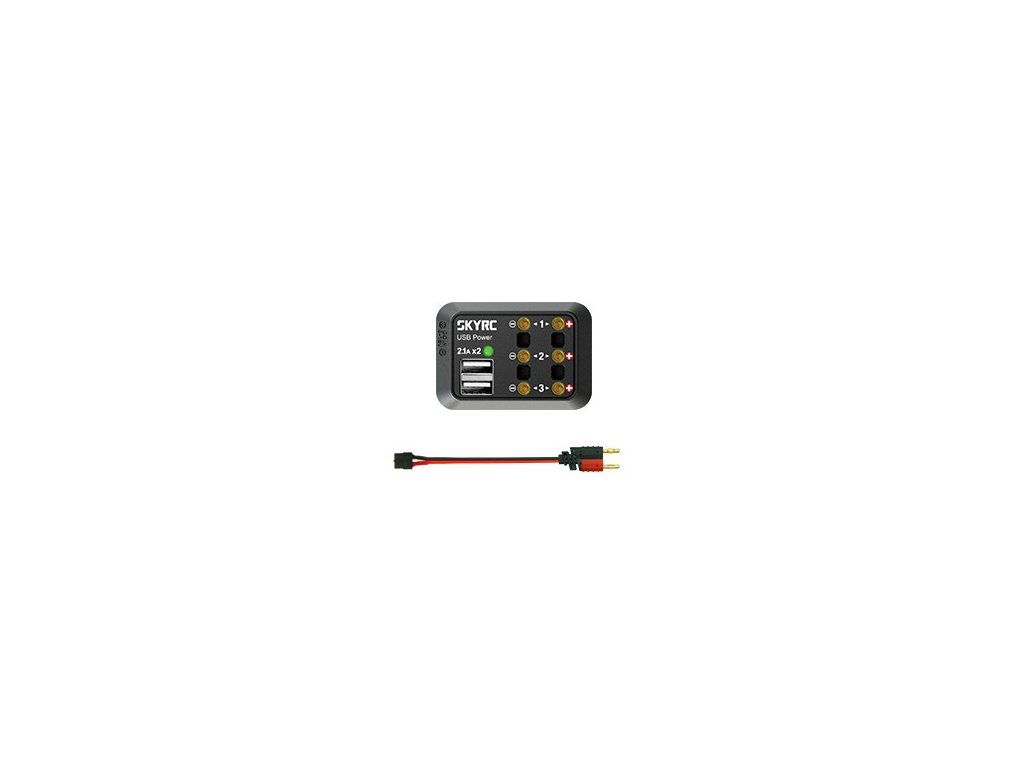

The DC Power Distributor's power cable is removable (with an XT60 socket), so you can easily make a power cable exactly "tailor-made" to your power supply.

The package includes: a DC Power Distributor multi-socket with a power cable.

Power supply (direct current) [V] - 6 - 18
Output current total max. [A] - 10
Length [mm] - 63.7
Width [mm] - 44
Height [mm] - 22.5
Weight [g] - 46
