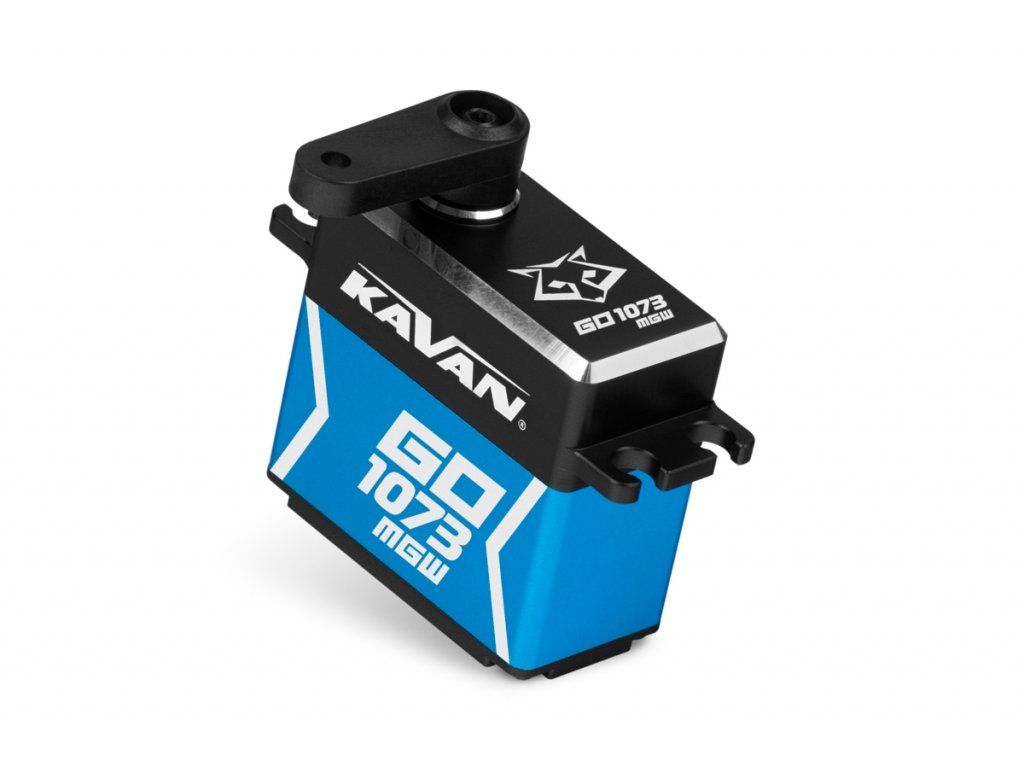

Servo Kavan GO-1073MGW digital servo (0.135s/60°, 32kg.cm)

Product detailed description

Very powerful and fast programmable digital standard servo 73g with coreless motor, steel gears and output shaft mounted on two ball bearings for use primarily in large aircraft models, RC cars 1:8 and 1:10, etc. For perfect cooling even under high load and protection against environmental influences, the servo is housed in a waterproof/dustproof (according to IP67 standard) aluminum box.

Using the USB programmer/interface for GO servos and the PC operating program, you can program a whole range of servo parameters (dimensions of deflections, sense of deflections neutral, overload protection, soft start, fail-safe, etc.).

Programmable functions

Drift size: Sets the maximum servo deflection size. The default setting is about 120° for the normal range of control pulse widths (900~2100 µs); about 180° for the maximum allowed range of control pulse widths (500~2500 µs).
Servo neutral: Sets the neutral (center) position of the servo.
Damping: Sets the behavior of the servo when stopping its movement.
Output power: Sets the output power of the servo. The higher the value, the faster the servo is and the higher its thrust - of course, the higher the current consumption will be. Range: 39.2~100%
Sensitivity: Sets the sensitivity (width of the deadband) of the servo. The higher the value, the narrower the deadband - the servo will only move if the change in the control signal width is greater than the deadband width. Setting the sensitivity value too high may cause servo oscillation in some applications. Range: Ultra High (Extra high - deadband approx. 1 µs) - High (High - approx. 2 µs) - Medium (Medium - approx. 3 µs) - Low (Low - approx. 4 µs)
Soft start: Turns on/off the soft start function. This function prevents the servo from suddenly running into the operating position after powering it on, thus limiting the risk of damage to its gears.
Reverse the sense of deflections: Reverses the sense of the servo deflections.
FUTABA SR mode: Only for use with FUTABA RC channels operating in SR mode. Do not turn this option on if you are using a different FUTABA RC set or an RC set of any other brand.
SANWA SSR Mode: Only for use with SANWA RC channels operating in SSR mode. Do not enable this option if you are using a different SANWA RC set or any other brand of RC set.
Fail-safe emergency deflections: In the event of a complete loss of control signal from the receiver or if the servo cannot detect the signal correctly (e.g. due to interference), the servo can enter one of three emergency modes:
(a) Free: Fail-safe is disabled.
(b) Position hold: the servo maintains the position corresponding to the last correctly received signal.
(c) Neutral return: The servo returns to the neutral (pulse width 1500 µs) position.
Overload protection: Enables or disables the servo overload protection in three levels - once the overload lasts for a preset time (in seconds), the servo output power is limited to the corresponding preset value (in % of max. power).
Reset: Restores the connected servo to factory default settings.

Extended supply voltage 4.8-7.4V (nominal).

25-tooth/5.92mm spline output shaft.

Servo size - Standard
Servo type - Digital
Programmable - Yes
Thrust at 4.8 V [kg∙cm] - 22
Thrust at 6.0 V [kg∙cm] - 26
Thrust at 7.4 V [kg∙cm] - 29
Thrust at 8.4 V [kg∙cm] - 32
Speed ​​at 4.8 V [s/60std.] - 0.18
Speed ​​at 6.0 V [s/60std.] - 0.16
Speed ​​at 7.4 V [s/60std.] - 0.145
Speed ​​at 8.4 V [s/60std.] - 0.135
Servo gears - Metal
Ball bearings - 2×
Highvoltage - Yes
Power supply [V] - 4.8 - 8.4

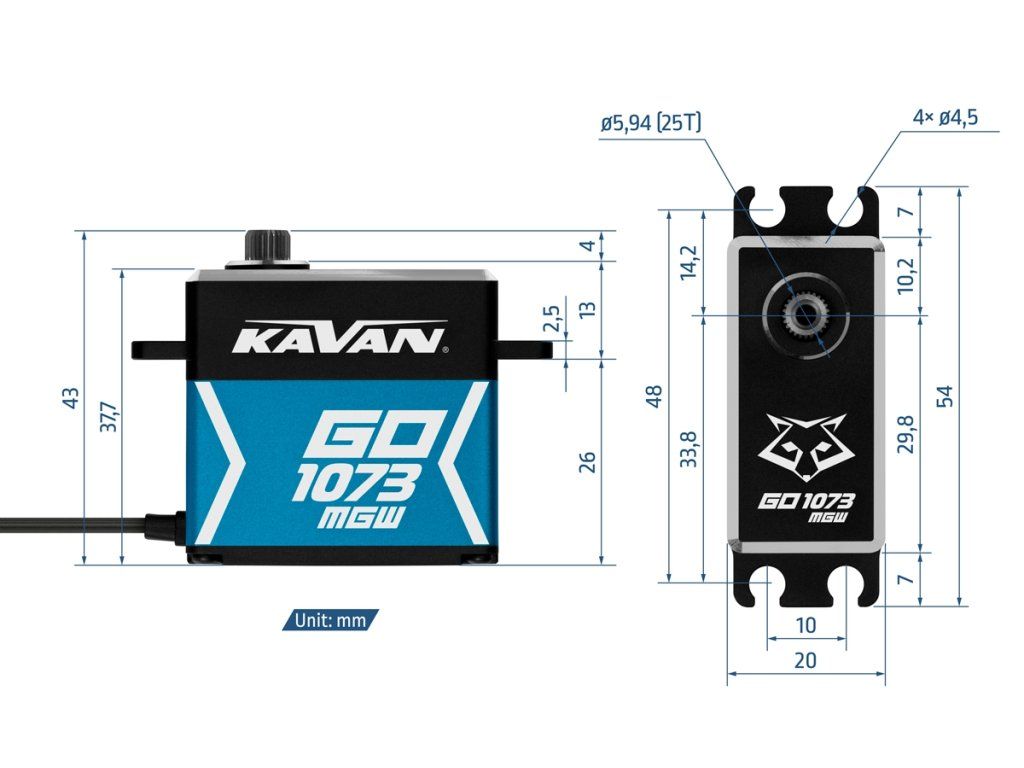

Length [mm] - 40
Width [mm] - 20
Height [mm] - 37.5
Weight [g] - 73
Designed for - Airplanes, Road cars, SUVs, Sailboats, Boats
Water resistance - Waterproof
