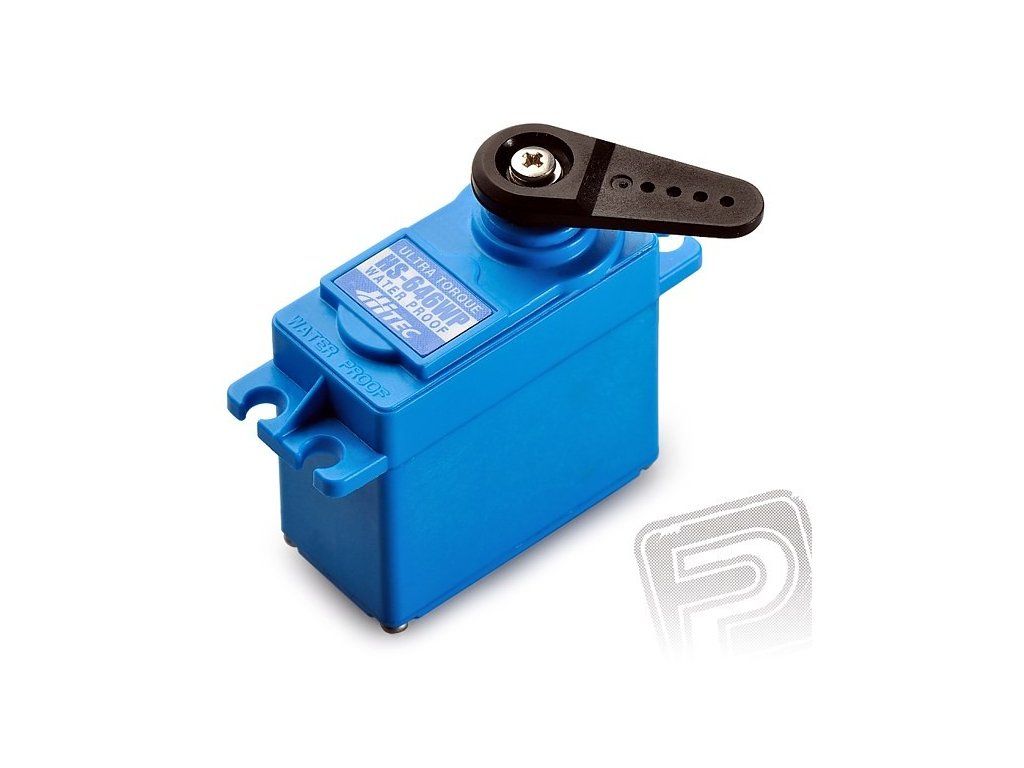

Servo Hitec HS-646 WP 7.4V waterproof

Product detailed description

Strong standard servo 60g with metal gears and increased supply voltage (2s LiPo) 2xBB, thrust 11.6 kg/cm, speed 0.17s/60st at 7.4 V. The servo is dustproof and waterproof. Ideal for 1/10 and 1/8 off-road cars, boats, submarines.

High-performance, precise and particularly strong analog servo of standard size with metal gears and output shaft mounted in 2 ball bearings. Thanks to the increased supply voltage (up to 7.4 V, 2s Li-poly/Li-Fe) it allows very easy implementation of on-board electronics with 2.4 GHz receivers of the Optima series when powered by a Li-pol or Li-Fe dual cell without the need for additional stabilizers or regulators.

Thanks to the dustproof and waterproof housing (resistance according to the International Protection Code IP-67 - completely prevents contact of the "insides" with dust, withstands immersion in water to a depth of 1 m for 30 minutes of test run) it is particularly suitable for off-road models of cars, boats and submarines - simply for places directly exposed to dust and moisture, with high demands on the pulling force and overall mechanical resistance of the servo.

Servo size - Standard
Servo type - Analog
Thrust at 6.0 V [kg/cm] - 9.6
Thrust at 7.4 V [kg/cm] - 11.6
Speed ​​at 6.0 V [s/60std.] - 0.2
Speed ​​at 7.4 V [s/60std.] - 0.17
Servo gears - Metal
Ball bearings - 2×
Highvoltage - Yes
Power supply [V] - 6 - 7.4
Length [mm] - 41.8
Width [mm] - 21
Height [mm] - 40
Weight [g] - 60
Designed for - Airplanes, Off-road vehicles, Sailboats, Boats
