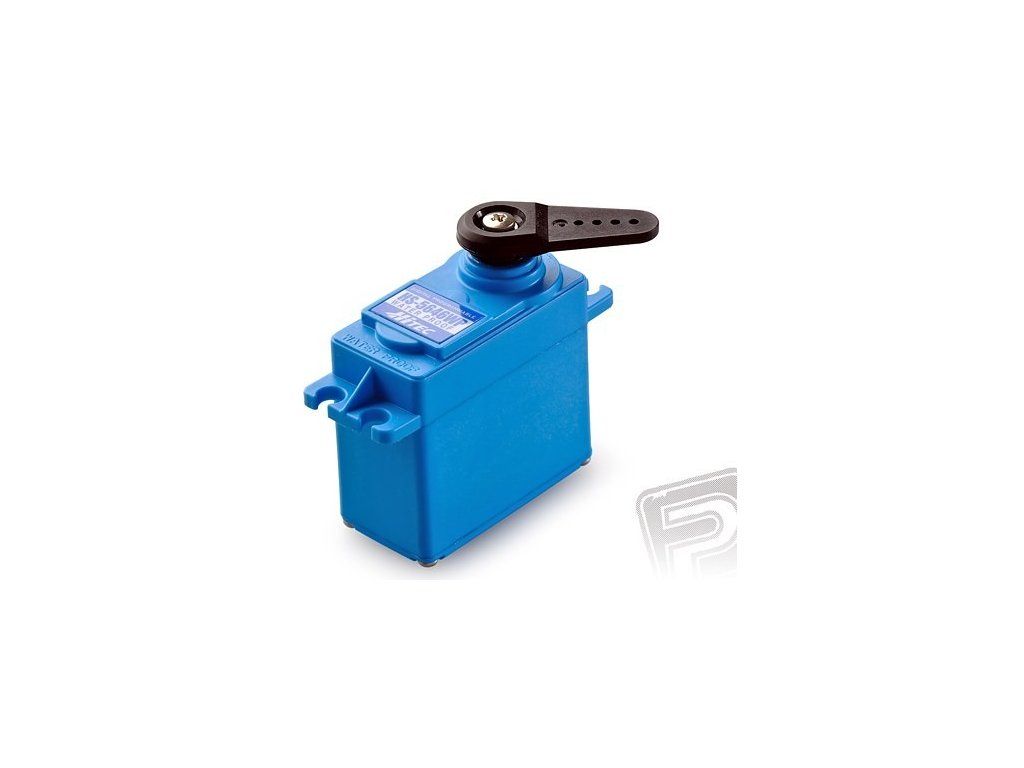

Servo Hitec HS-5646 WP 7.4V digital waterproof

Product detailed description

Powerful standard digital servo 61g with metal gears and increased supply voltage (2s LiPo) 2xBB, thrust 12.9 kg/cm, speed 0.18s/60st at 7.4 V. The servo is dustproof and waterproof. Ideal for off-road cars 1:10 and 1:8, boats, submarines. Replaced by Hitec D646WP servo (Product code 1HI38809).

High-performance, precise and particularly powerful digital servo of standard size with metal gears and output shaft mounted in 2 ball bearings. Thanks to the increased supply voltage (up to 7.4 V, 2s Li-poly/Li-Fe) it allows very easy implementation of on-board electronics with 2.4 GHz receivers of the Optima series when powered by a Li-pol or Li-Fe dual cell without the need for additional stabilizers or regulators.

Thanks to the dustproof and waterproof housing (resistance according to International Protection Code IP-67 - completely prevents contact with dust, withstands immersion in water to a depth of 1 m for 30 minutes of test run), it is particularly suitable for off-road car models, boats and submarines - simply for places exposed to dust and moisture, with high demands on the pulling force and overall mechanical resistance of the servo.

With the Hitec HFP-10*, HFP-20, HFP-25, HPP-21 or HPP-21 Plus digital servo programmer, you can program:

• Reset to factory defaults,
• Deadband width
• Direction of rotation
• Speed ​​of rotation
• Neutral
• Amount of deflection
• Turn fail-safe on or off
• Set emergency deflection of fail-safe
• Servo overload protection (power limitation 0-50% at overload)

*Note: It is not possible to program overload protection with the older HFP-10 programmer.

Servo size - Standard
Servo type - Digital
Thrust at 6.0 V [kg/cm] - 11.3
Thrust at 7.4 V [kg/cm] - 12.9
Speed ​​at 6.0 V [s/60deg.] - 0.2
Speed ​​at 7.4 V [s/60deg.] - 0.18
Servo gears - Metal
Ball bearings - 2×
Highvoltage - Yes
Power supply [V] - 6 - 7.4
Length [mm] - 41.8
Width [mm] - 21
Height [mm] - 40
Weight [g] - 61
Designed for - Airplanes, SUVs, Sailboats, Boats
Water resistance - Waterproof
