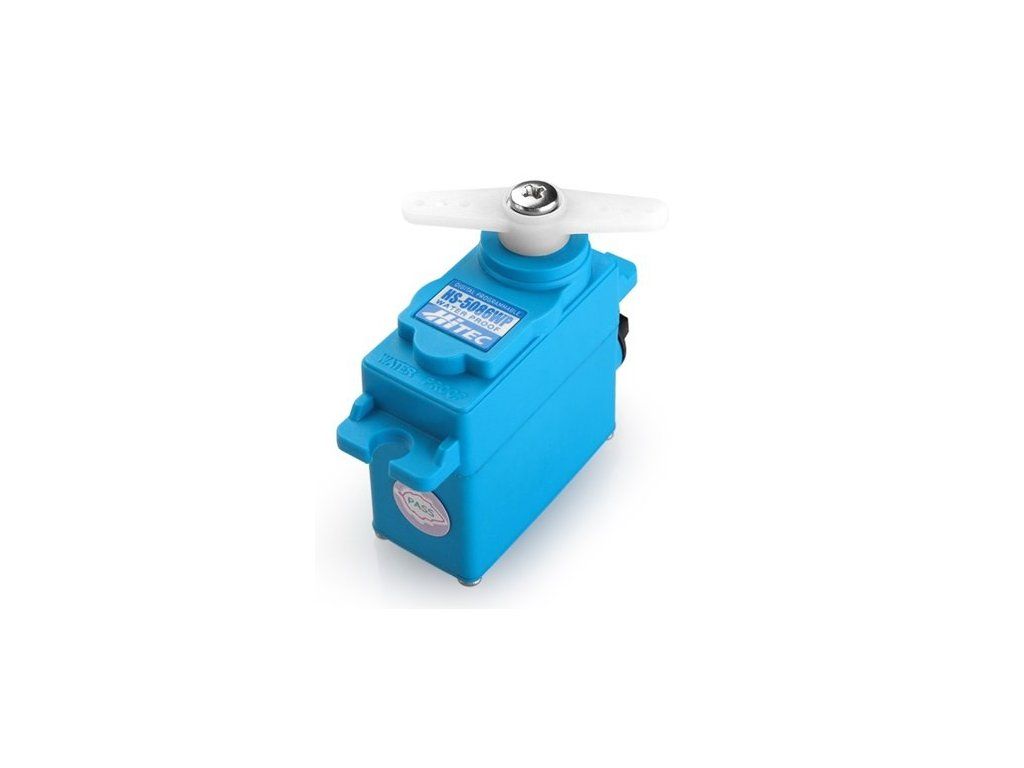

Servo Hitec HS-5086 WP digital waterproof

Product detailed description

Powerful digital microservo with metal gears and output shaft mounted on 2 ball bearings with dustproof and waterproof housing. Digital variant of the proven HS-85 MG servo.

Thanks to the dustproof and waterproof housing (resistance according to International Protection Code IP-67 - completely prevents contact with dust, withstands immersion in water to a depth of 1 m during 30 min of test run), it is particularly suitable for off-road car models in 1/14 - 1/18 scale, ships and submarines - simply for places exposed to dust and moisture, with high demands on the pulling force and overall mechanical resistance of the servo.

With the Hitec *HFP-10, HFP-20, HPP-21 or HPP-21 Plus digital servo programmer, you can program:

• Factory Reset
• Deadbandwidth
• Direction
• Speed
• Neutral
• Deflection Size
• Turn fail-safe on or off
• Set fail-safe emergency deflection
• Overload Protection (0-50% power limitation during overload)

*Note: Overload protection cannot be programmed with older HFP-10 programmers.

Servo size - Micro
Servo type - Digital
Thrust at 4.8 V [kg/cm] - 3
Thrust at 6.0 V [kg/cm] - 3.6
Speed ​​at 4.8 V [s/60deg.] - 0.18
Speed ​​at 6.0 V [s/60deg.] - 0.15
Servo gears - Metal
Ball bearings - 1×
Highvoltage - No
Power supply [V] - 4.8 - 6
Length [mm] - 31
Width [mm] - 15.2
Height [mm] - 31
Weight [g] - 28.5
Intended for - Airplanes, Off-road vehicles, Sailboats, Boats
