RC switch DS1CW waterproof

Product detailed description

DS1CW, resistant to splashing water, snow and dust, is designed for switching accessories in models and mock-ups: cars, TIRs, tanks, ships, speedboats, submarines, aircraft, gliders and mechanical machines.

FEATURES:
• Easy to use

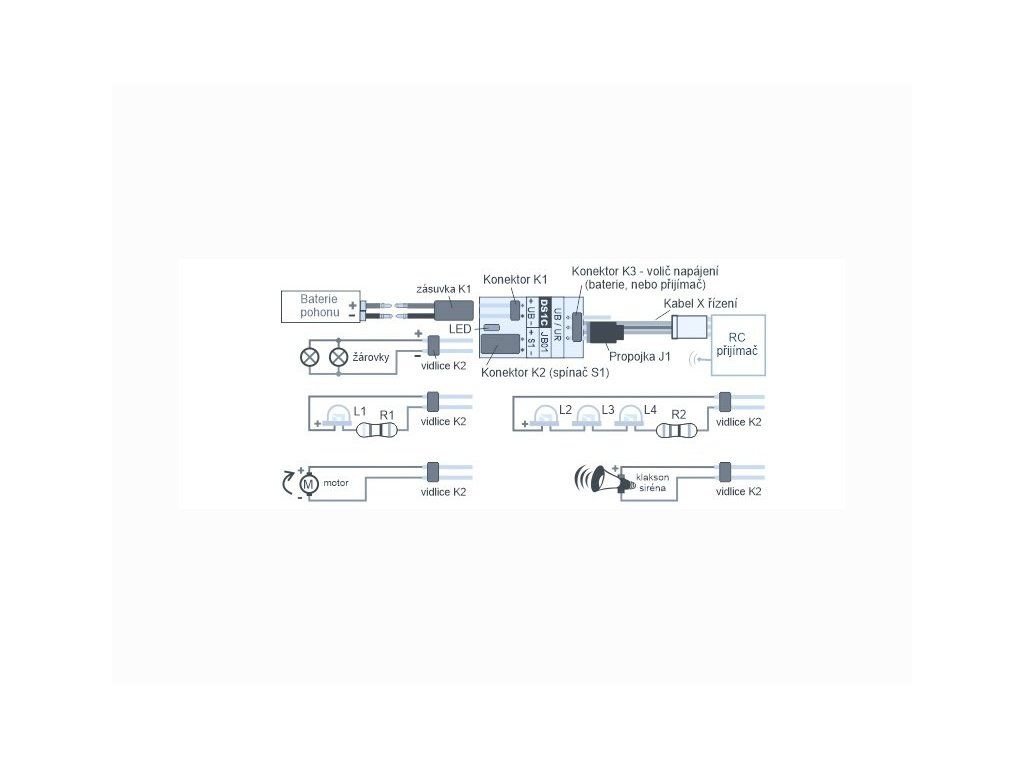

• Switching: siren, horn, beacon, light bars, power LEDs (bars, strips), bulbs, smoke generators, winch, relay, motor...
• Control by lever, steering wheel, switch position.
• 1 controllable output with current capacity 3A (5A/3s).
• Clear indication of switch S1 switching by green LED diode L.1
• Power selector: from drive battery (4V to 18V), or from receiver (4V to 8V).
• DS1C is ready for operation immediately.

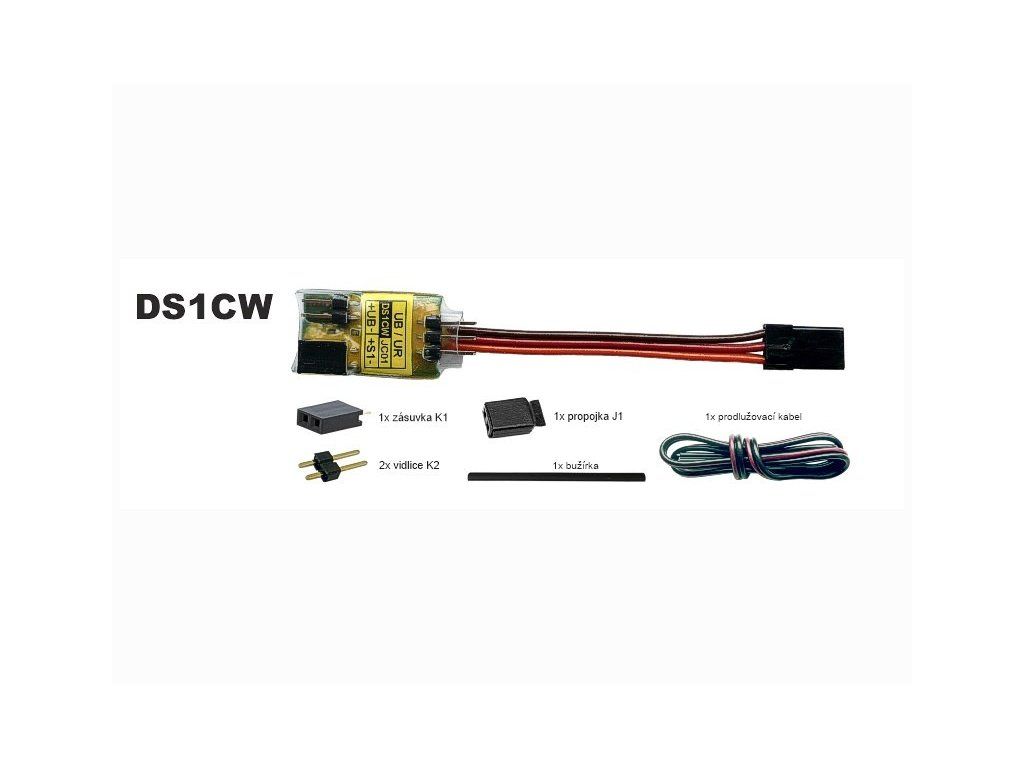

Scope of delivery: DS1CW (SW 1.1), user manual, 1x socket K1, 2x plug K2, 1x jumper J1, tubing, two-core cable.

Technical data
Type - DS1CW
Current - 3A, (5A / 3s)
Batteries - 4-12 NiCd, NiMH, 2S-4S Li-Pol / Li-ion / Li-Fe (A123), Pb 6V /12V
BEC - NO
Current protection. Protection with special paint against splashing water and mechanical shock
Parameters - switched on / off
Dimensions - 25 x 14 x 4 mm
