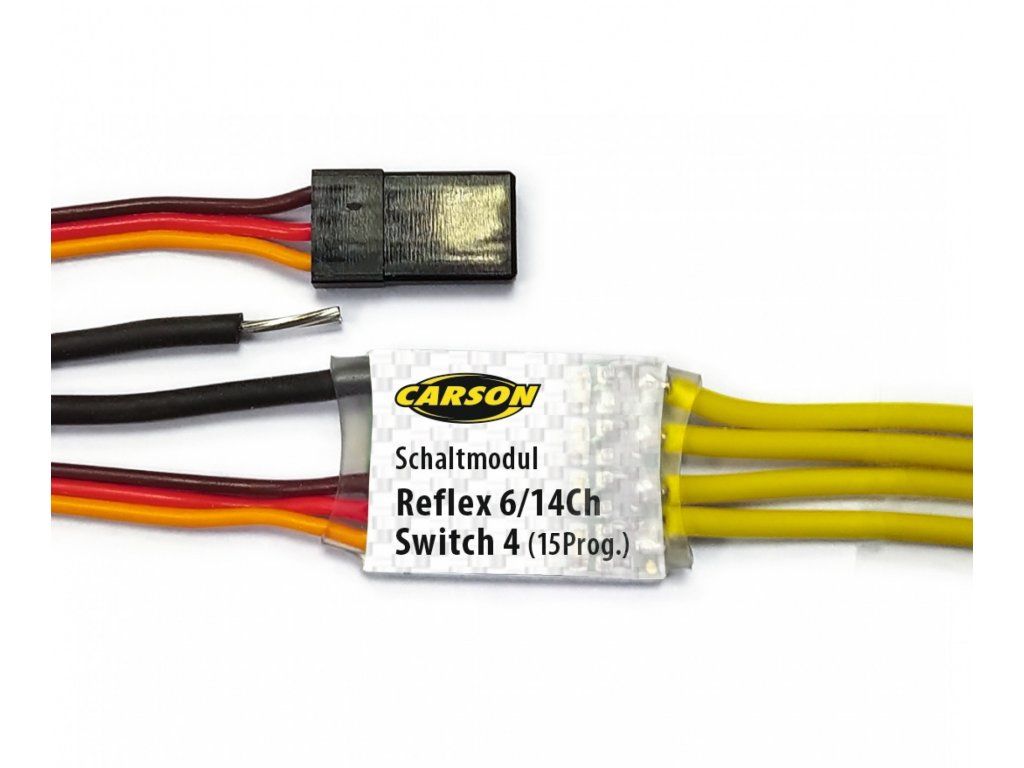

RC switch Carson Reflex 6/14Ch Switch 4 (15Prog)

Product detailed description

The switch modules connect directly to your RC receiver and can be controlled using a button, switch or joystick. The switch module contains four separate NPN outputs. All have a 200mm long blue cable that must be connected to the negative pole of the load. Each output can switch a current of up to 2.5 A. The maximum permitted supply voltage is 16 V/DC. The module is powered by the servo cable itself. The black negative cable can be connected directly to the battery. For high loads, the black cable must be connected to the distribution terminal or the drive battery to avoid damage to the receiver.

Technical specifications:

Switching mode: 15 programs
Input voltage: 4 - 8 V/DC (5.0 - 5.5 V/DC from the receiver)
Switching outputs: 4
Switching voltage: max. 16 V/DC
Switching current: max. 2.5 A per output
Servo connection: Cable length: 300 mm, UNI connection system
Dimensions: 16 x 14 x 4 mm
Weight: approx. 10 g
