LED lighting set 10 LED with controller 1/10

Product detailed description

Complete set for LED lighting of RC model cars or trucks. It will quickly and easily bring every RC model car to life. Easy connection and installation.
Illuminates the standard lighting functions of the model, headlights, taillights, brake lights, turn signals.

Wiring instructions:
Use the enclosed Y-servo cables to connect the receiver - light controller - ESC controller - steering servo. The light control electronics are in the wiring diagram between the receiver and the power terminals. This means that when connected correctly, the steering servo deflection will trigger the flashing of the turn signals, and braking will light up the brake lights. The tail lights have a combined brake function. They light up at half brightness while driving, and light up fully when braking.
Connect the LEDs with cables using the white connectors to the control electronics according to the enclosed diagram. The color (+) of the cables indicates the color of the LED. Yellow cable for turn signals, red cable for tail lights, etc.
The lights are powered via the ESC connection from the drive battery. No separate battery is required.

Suitable for models in scales: 1/10 - 1/16

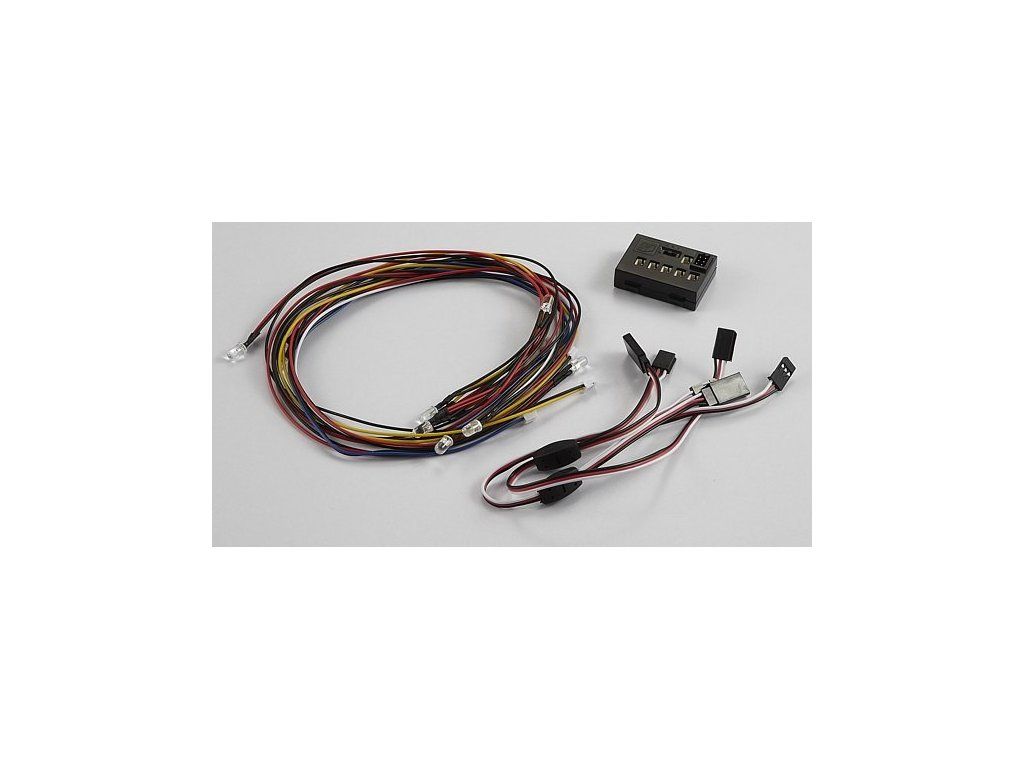

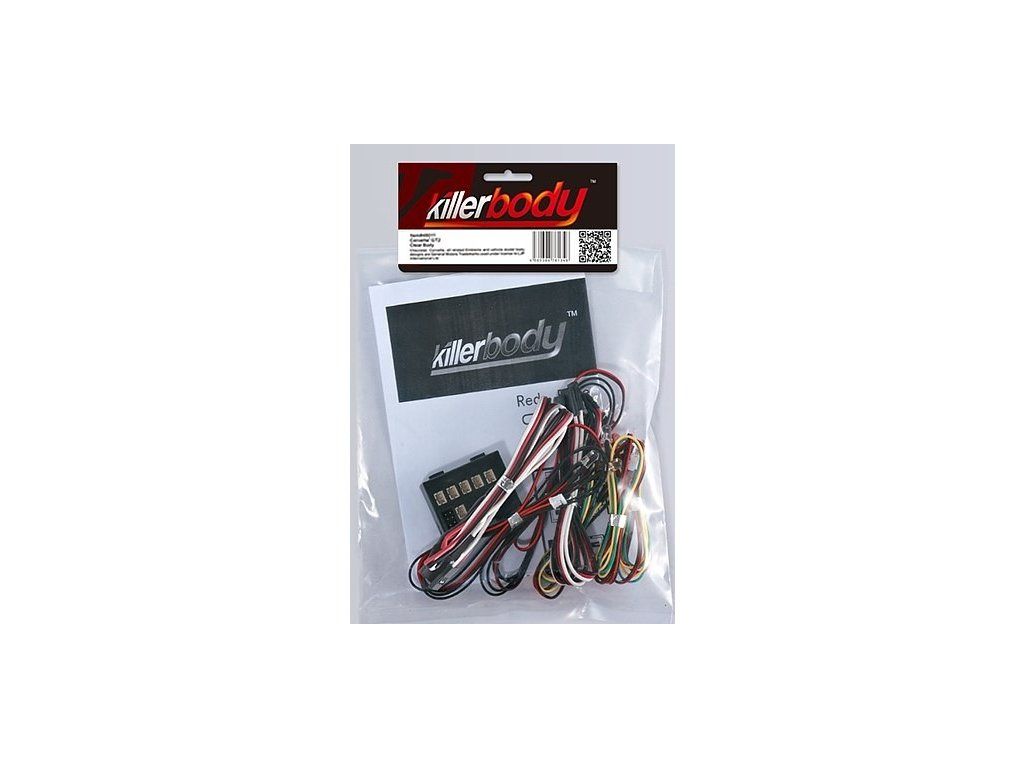

Set contents:
1x control electronics
1x connecting cables
2x white LED
2x blue LED
2x red LED
4x orange LED
