Hobbywing LED programming box

Product detailed description

The LED programming box for selected Hobbywing series controllers for cars, planes and boats is used for simple and quick programming of controllers - at home "on the table" as well as at the airport. The controller is connected using a servo cable, the socket is located on the top of the box. The box is powered by the Hobbywing controller's BEC power stabilizer or from a common 4-5 cell NiCd/NiMH or 2S LiPo/LiFe receiver battery connected to the box (in the case of the OPTO controller). Programming is performed with the motor and drive battery connected (also in the case of OPTO controllers).:

Hobbywing flight controllers can be programmed in a model with a mounted propeller - for safety reasons, we still recommend removing the propeller when programming - this will prevent a possible accident due to some omission or operator error. Also, program the controllers in cars and boats safely placed on a stand with wheels, or with the propeller in the air or with the pinion or shaft coupling removed.

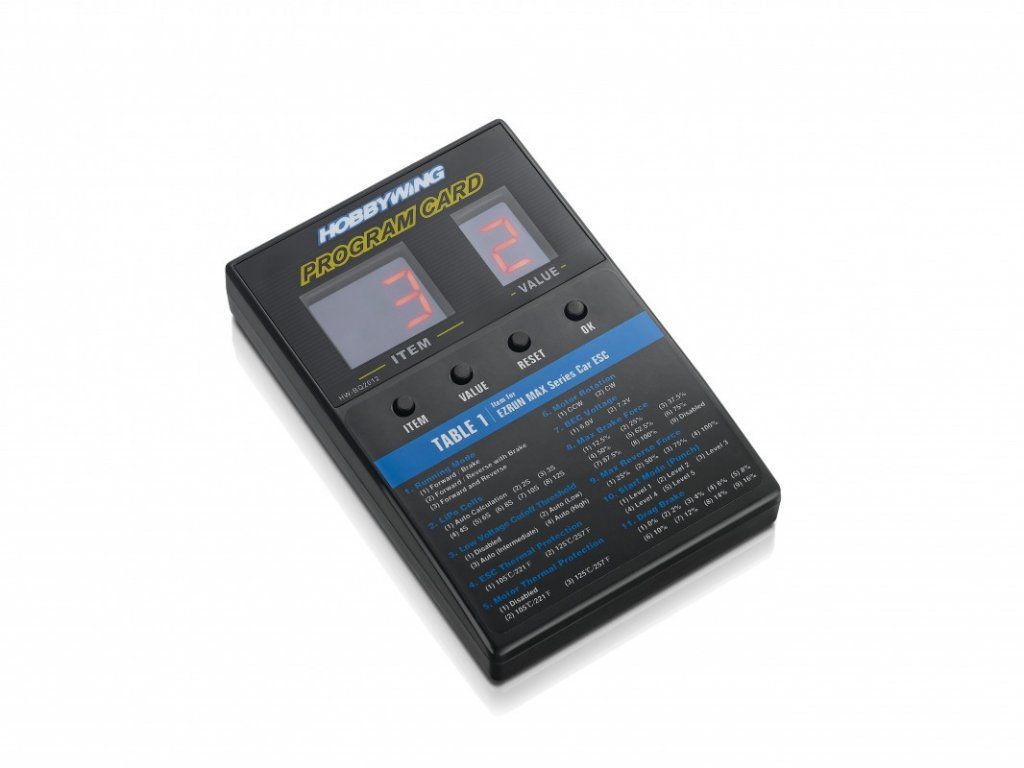

Four buttons on the front panel of the box are used for programming. With their help, you select the program functions ("ITEM") for adjustment and set their value (VALUE. The "OK" button confirms the change made and sends it to the controller, the "RESET" button is used to delete all settings and return all values ​​to the factory default settings. The program function number is displayed on the left on the two-digit LED display ("ITEM"), the function value

The method of connecting the controller to the LED programming box depends on the type of controller - it varies depending on whether it is a controller with a BEC power stabilizer or an OPTO controller, whether the controller has a programming cable or socket, etc. When connecting, follow the instructions supplied with the box and your controller exactly as described.

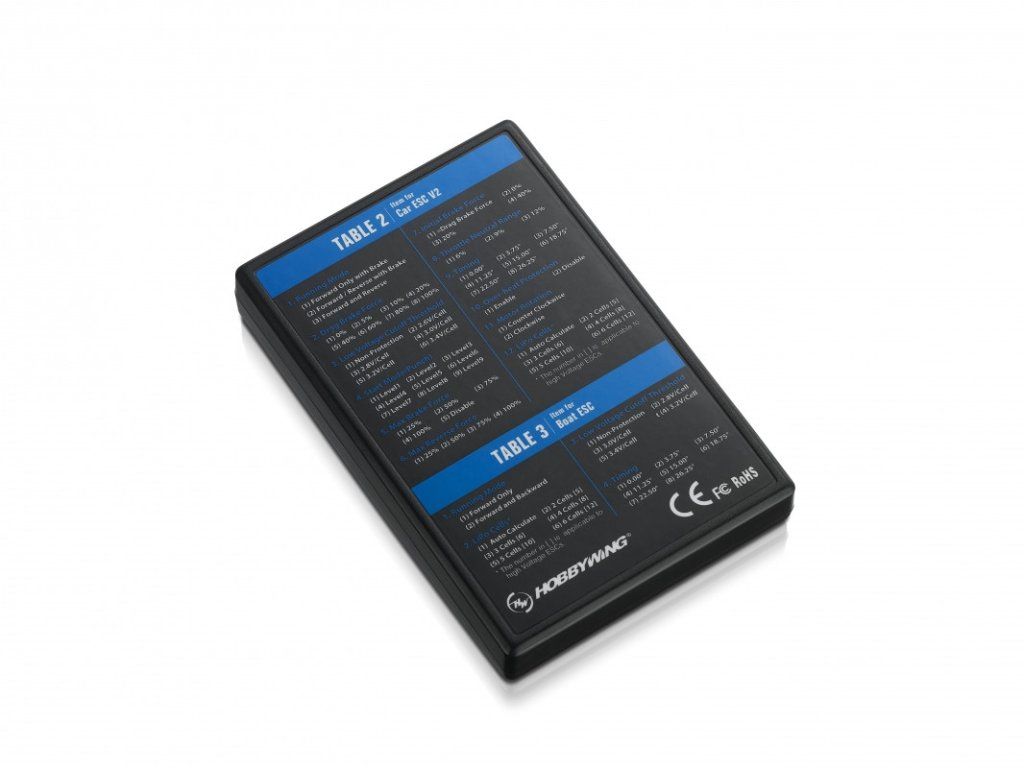

The list of functions and adjustable values ​​is given on the label on the card ("Table 1" - controllers for cars, Table 2 - controllers for aircraft, Table 3 - controllers for boats); a detailed description of the functions is given in the instructions supplied with Hobbywing controllers.

Compatible Hobbywing controllers

Platinum V1/V2, FLYFUN V5 for airplane and helicopter models
XERUN (most), EZRUN and QUICKRUN for car models
SEAKING for boat models (not Seaking Pro).

Power supply [V] - 4.8 - 8.4
Length [mm] - 88
Width [mm] - 58
Height [mm] - 14
Weight [g] - 40
