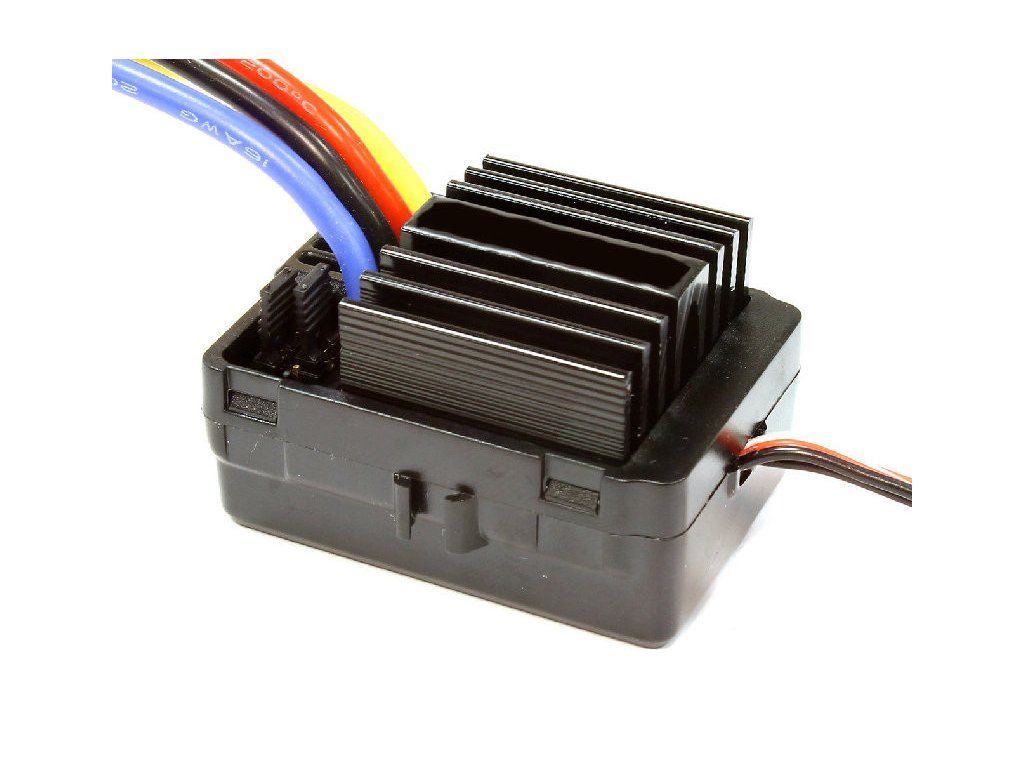

ESC controller df-models WP1040

Product detailed description

Electronic waterproof speed controller for DC (brushed) electric motors in remote-controlled model cars, boats, or other types of models.

Bidirectional (forward - reverse) controller designed for DC motors up to the size class 540 / 550. It can be used not only for df-models models, but also other RC cars or boats with the same type of drive. For DC motors from 12 turns (T) (with 2S LiPo/NiMH 6 cells) and from 18 turns (with 3S LiPo/NiMH 9 cells)

The controller is set using two shorting jumpers, the position of which determines the battery type and the type of brake/throttle setting.

Connector: T-DEAN

Note on water resistance: A product marked by the manufacturer as waterproof (WP, waterproof, water resistance) is usually able to withstand short-term exposure to splashing water, for example, running through a puddle, short-term driving on wet grass, in light rain, in snow, etc. ATTENTION! Waterproof does not mean watertight! A waterproof product is not able to withstand the effects of a higher column (pressure) of water, which means that it is not possible to immerse such a product under the water surface. To achieve watertightness in the case of a waterproof product, it is recommended to either use, for example, Nanoprotech, or place the device in a perfectly sealed package.
Only products clearly marked as watertight with manufacturer-guaranteed watertightness to a clearly marked immersion depth (water column, water pressure, etc.) can be submerged for an extended period of time under water.
