Electric motor FOXY 500 Race 7.2V

Product detailed description

FOXY Brushed DC motors are ideal for a wide range of model applications - for driving aircraft, ships, cars, tanks and other land vehicles with direct drive and gearboxes. When installing and connecting FOXY Brushed motors, make sure not to exceed the permitted supply voltage and current load values.

Motor cooling: During operation, the temperature of the outer casing of the motor should not exceed 80°C. Therefore, it is always necessary to ensure sufficient access of cooling air and its flow around the motor in the model; in the case of ship models, we recommend using water cooling. High motor loads are only possible for a short time. After each flight/ride, it is necessary to let the motor cool down to room temperature before taking off/sailing again.

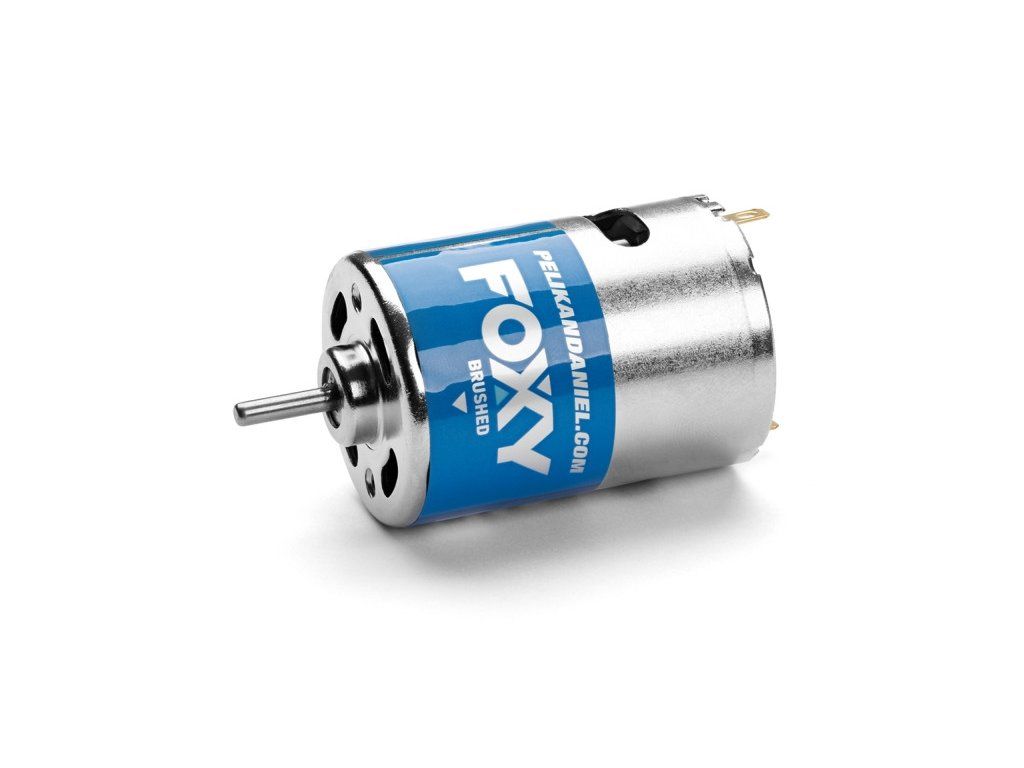

FOXY 500 Race 7.2 V is a DC electric motor of size "540" with a shaft with a diameter of 3.175 mm and plain bearings suitable for driving fast aircraft models with direct drive (5x5" propeller) or with a gearbox, for car and boat models (ship propeller). To control its speed, you will need an electronic controller with a load capacity of 30–40 A. FOXY 500 Race 7.2 V is a suitable replacement for the Speed ​​​​500 Race 7.2 V motor.

The motor set includes: FOXY 500 Race 7.2 V motor, Operating instructions

Voltage (nominal) [V] - 7.2
Voltage (operating) [V] - 3.7 - 12
Speed ​​at nominal voltage [rpm] - 23500
Regulator [A] - 30 - 40
Diameter [mm] - 36
Length (case) [mm] - 50
Shaft diameter [mm] - 3.175
Shaft free length [mm] - 12.5
Weight [g] - 189
