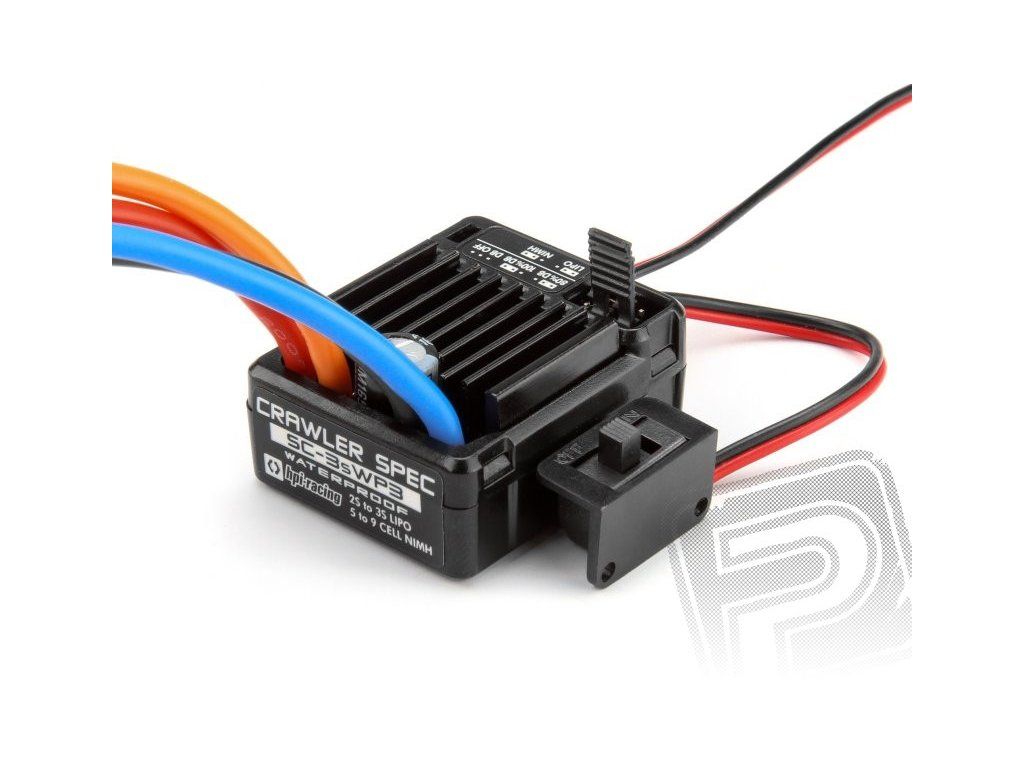

Controller HPI SC-3SWP3 Crawler Edition

Product detailed description

Bidirectional waterproof ESC speed controller for electric motors in RC car models of all categories, boats or other RC models powered by DC electric motors.

Designed for electric motors from 12 turns.

Specifications:

• Continuous forward current: 40A
• Maximum forward current: 180A
• Applications: 1/10 on-road, off-road buggy, short course truck, truggy, crawlers, tanks, boats
• Motor limits: 2S LiPo or 6-cell NiMH: 540 or 550 motor size = 12 turns and more
• Motor limits: 3S LiPo or 9-cell NiMH: 540 or 550 motor size = 18 turns and more
• PWM Frequency: 1 KHz
• BEC: 6V/3A
• Dimensions: 36 x 29.5 x 17.5 mm
• Weight: 41 g
• Compared to its predecessor, version 3 has an improved downhill braking function.

Note on water resistance: A product marked by the manufacturer as waterproof (WP, waterproof, water resistance) is usually able to withstand short-term exposure to splashing water, for example, running through a puddle, short-term driving on wet grass, in light rain, in snow, etc. ATTENTION! Waterproof does not mean watertight! A waterproof product is not able to withstand the effects of a higher column (pressure) of water, which means that it is not possible to immerse such a product under the water surface. To achieve watertightness in the case of a waterproof product, it is recommended to either use, for example, Nanoprotech, or place the device in a perfectly sealed package.
Only products clearly marked as watertight with manufacturer-guaranteed watertightness to a clearly marked immersion depth (water column, water pressure, etc.) can be submerged for an extended period of time under water.
