Carson FS 6K Reflex Stick II 2.4GHz Camouflage Transmitter

Product detailed description

The second generation of the modern RC set, designed primarily for controlling models of land vehicles and ships.
Attention, not intended for RC models of airplanes, helicopters and drones!

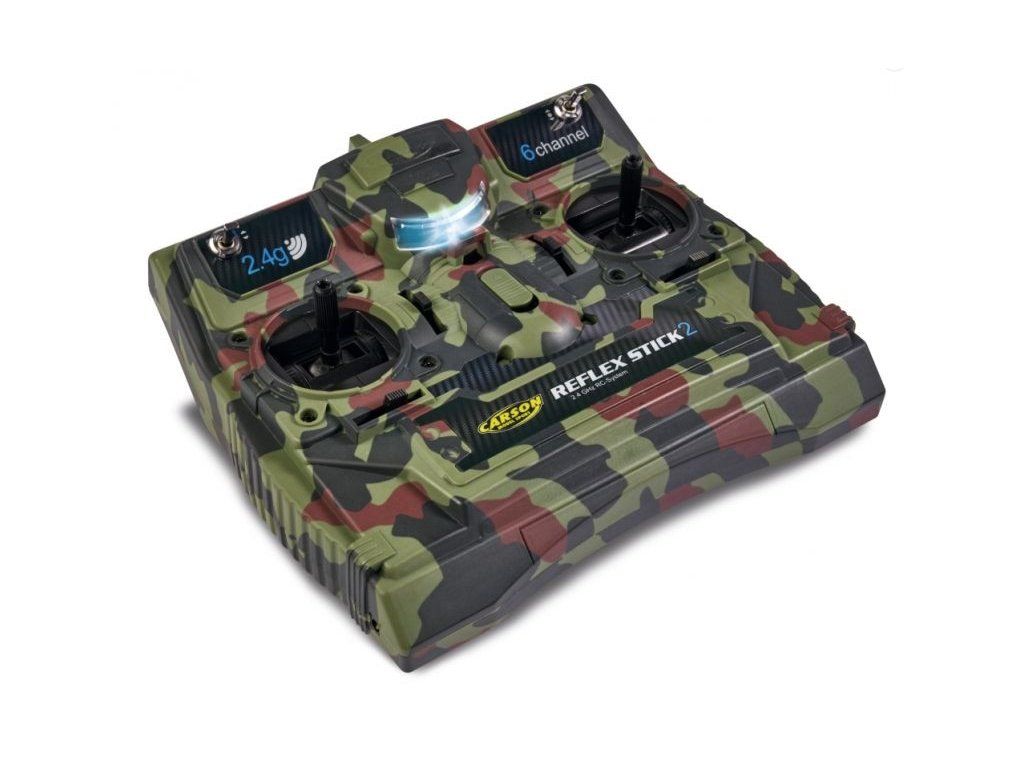

The Reflex Stick II from Carson is a low-cost, modern and technically high-quality 6-channel remote control system for universal use with RC vehicles and ships. With the Reflex Stick II, you can independently control 6 channels using 2 joysticks and 2 switches (1x button / 1x switch). The six-channel system is fully compatible with all TAMIYA MFC and DMD multifunction units, as the trims are of the classic slider type. Now the remote control system is available in a new "camouflage" look that matches your RC tank model well.

The FHSS transmission system guarantees excellent safety. The integrated short transmitter antenna increases the comfort of handling the transmitter. The Reflex Stick 6 RC system is fully compatible with Tamiya MFC 01/03, MF01 - 08, DMD, Carson LR634 CU multi-function control units.

Both control levers (channel 1-4) are centered, returning to the center position automatically. The trims are classic sliders, which may seem outdated, but this is intentional. When controlling truck and tank models using MFU multi-function units, some functions are switched using trims. Digital trims would be very inconvenient in this case (it takes a long time to reach the extreme position).

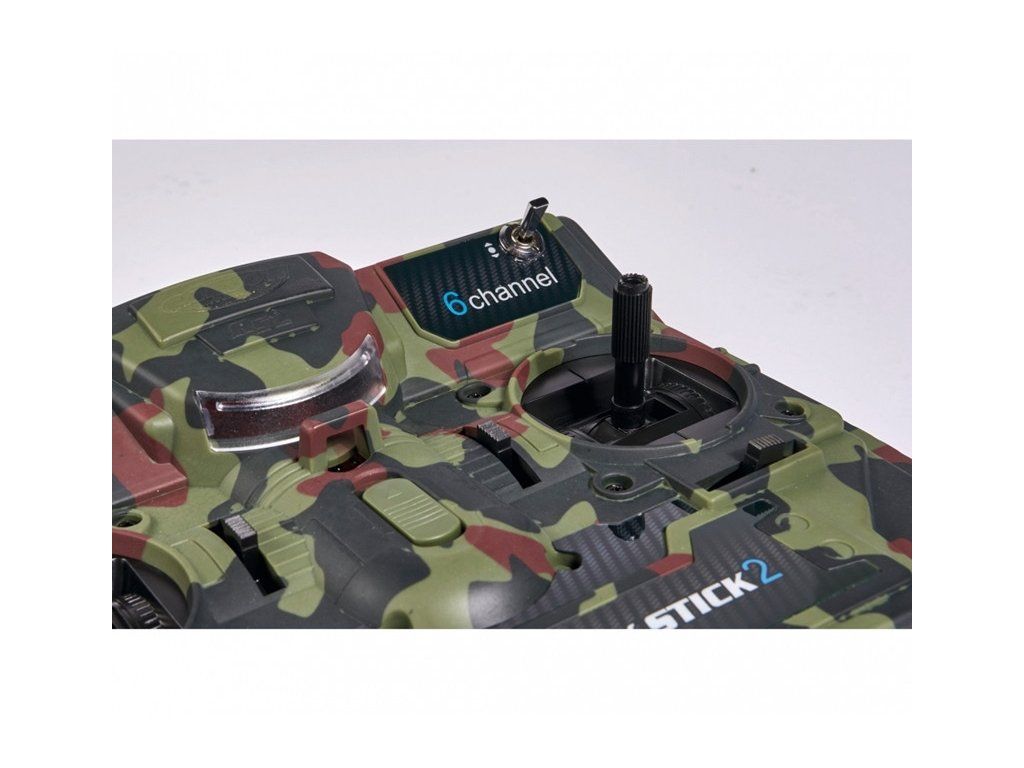

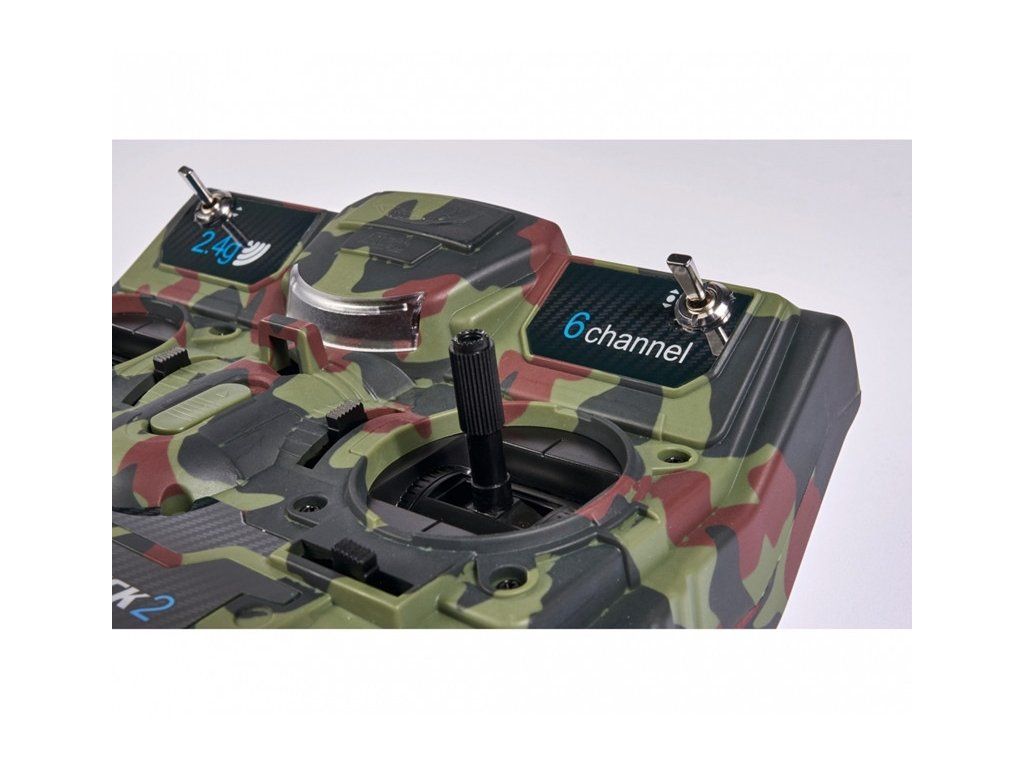

The fifth and sixth channels are controlled by 3-position switches 1-0-1. One is self-centering (button) and the other holds the position (switch).
The first four channels are reversible (change the direction of operation) by switching the individual REV-NOR switches.

An unlimited number of Carson Reflex Stick 2 receivers can be paired with the transmitter, so you can have multiple models with just one transmitter.

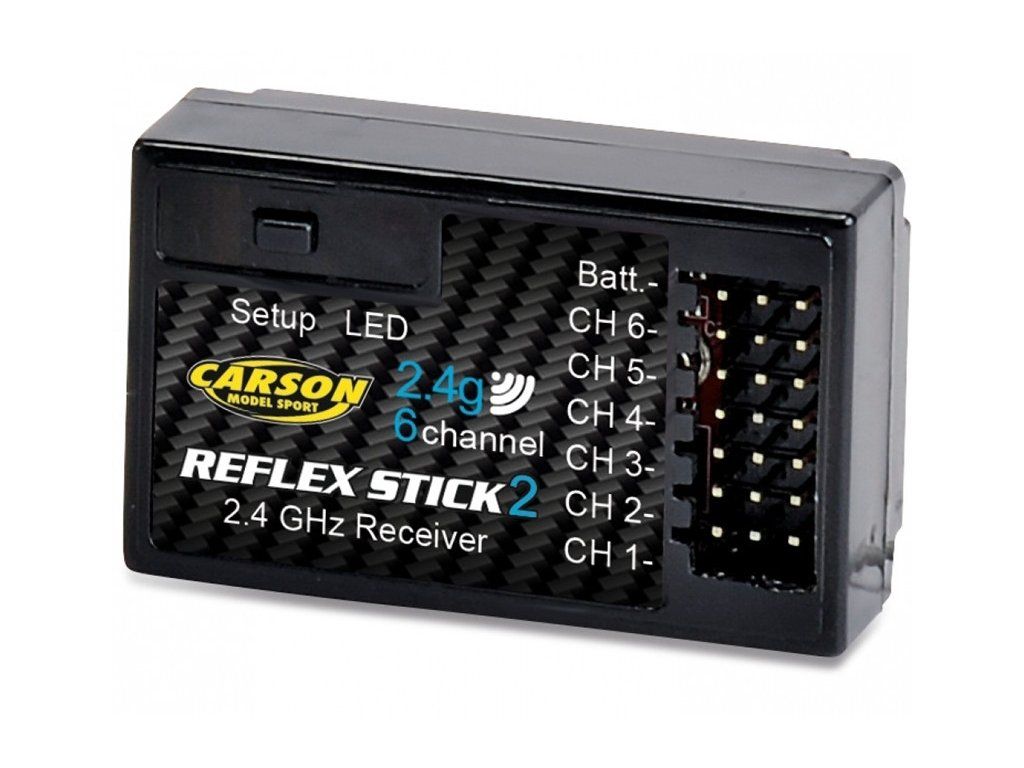

Pairing is very easy: Install the receiver in the model and turn off the transmitter, also make sure that no other transmitter is turned on nearby. Turn on the power to the model and the LED on the receiver will start to flash slowly. Press the SETUP button and the LED will start to flash quickly. Then turn on the transmitter and within a few seconds the transmitter will pair with the receiver. The LED on the receiver will remain lit continuously.

• 2.4 GHz FHSS system
• Receiver operating voltage 6V
• Servo reverse and trim for all channels

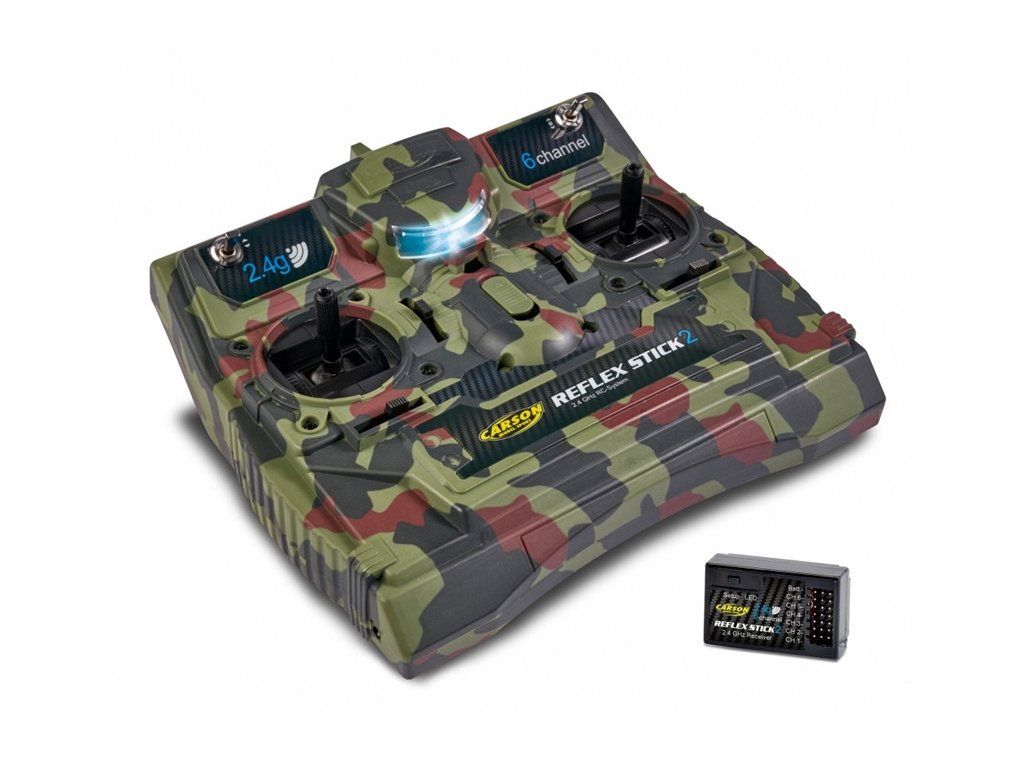

Package includes: Reflex Stick 2 transmitter, Reflex Stick 2 receiver

Need to purchase: 4x AA batteries for the transmitter

Recommended equipment:
500501537 - 6 channel receiver
500503060 - Reflex 6/14Ch Switch 2 (2x2.5A, max. 16V)
500503061 - Reflex 6/14Ch Switch 4 (4x2.5A, max. 16V)
500503062 - Reflex Switch 2/4 Power Distributor.

Safety warning:
Not suitable for children under 14 years of age. The packaging must be kept as it contains important information. The illustration may differ from the actual product in the box. CARSON reserves the right to change, update or replace any component at any time.
